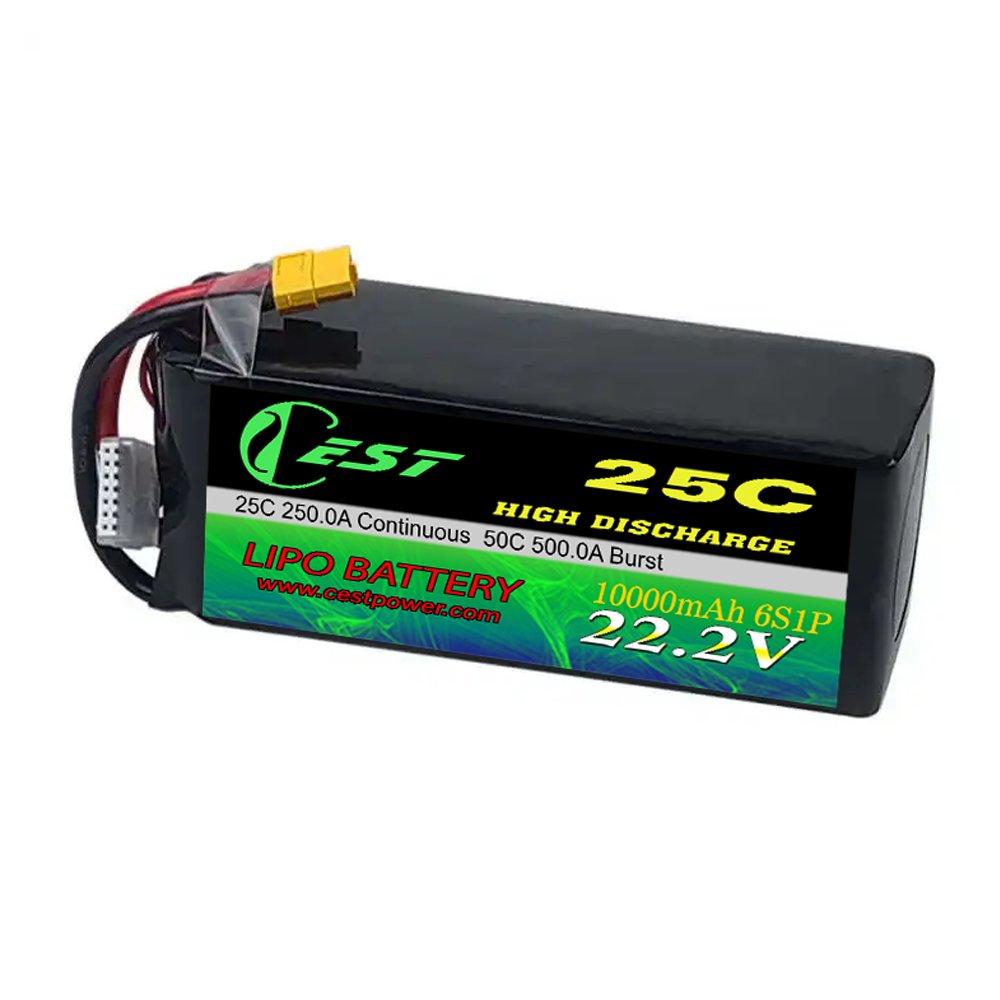

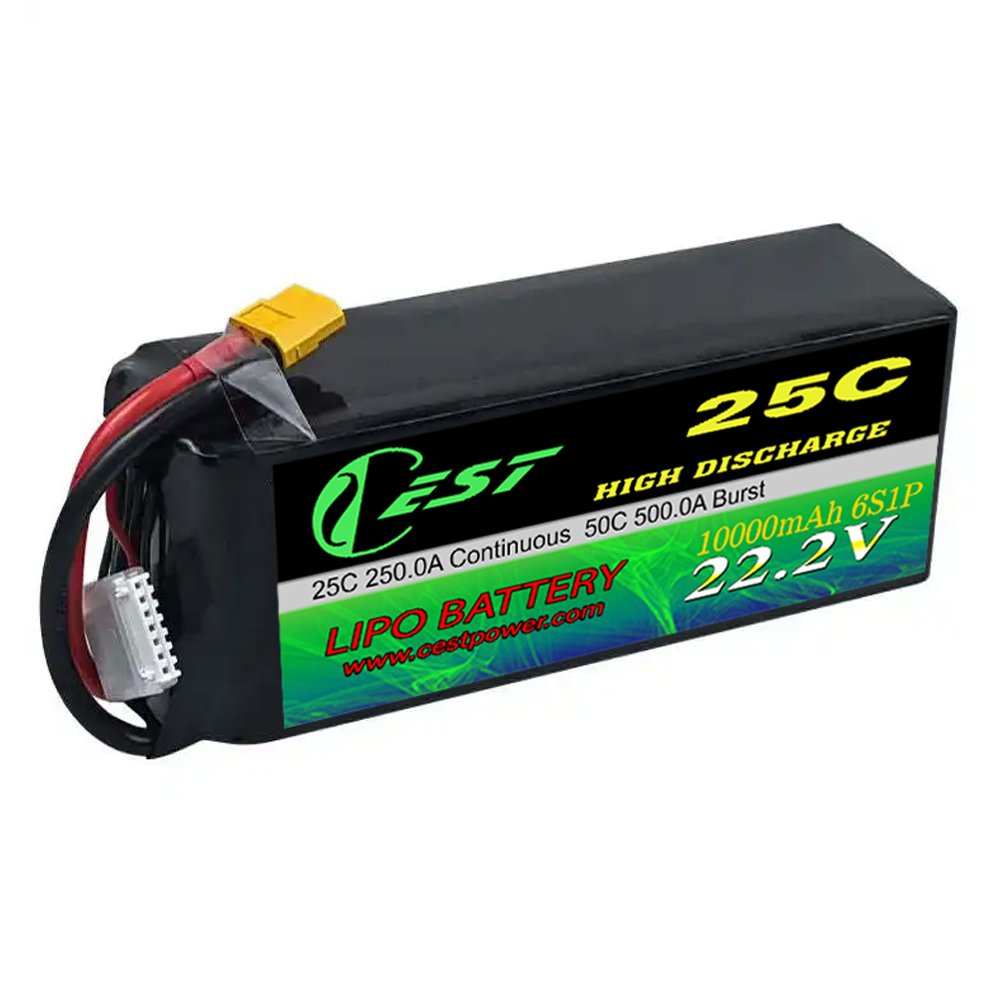

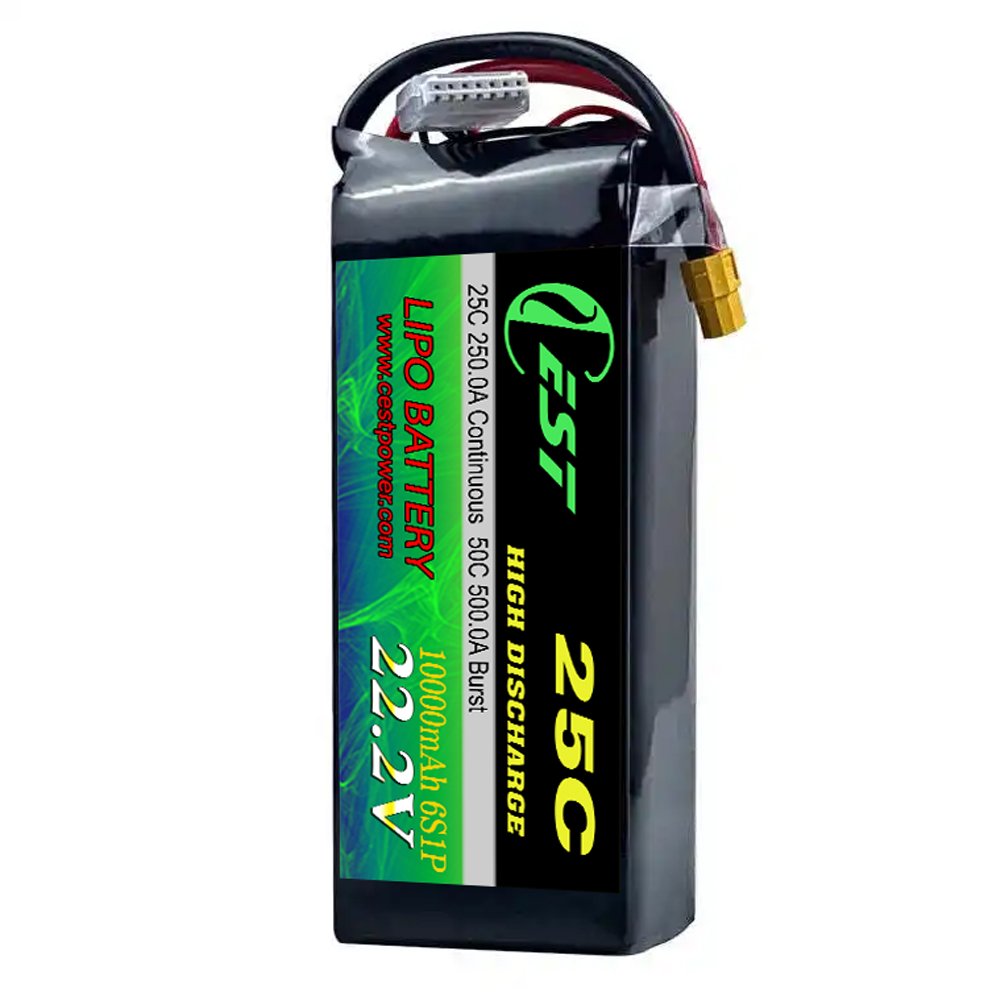

Summary of 6S 10000mAh 25C 22.2V LiPo Battery Pack for UAV Agriculture Drone

This high-performance 6S 22.2V 10000mAh 25C LiPo battery is engineered for agricultural UAVs needing powerful bursts for takeoff, climbing, and heavy-load spraying. With an impressive 183.01 Wh/kg energy density, high discharge rate, excellent cell consistency, and 500+ cycle life, it ensures stable flight, accurate posture control, and long-term operational efficiency. Full customization for voltage, capacity, terminals, and labeling is supported.

25C 10000mAh 6S LiPo Battery Parameters

Model: CP10000WQ25-6S

Battery Type: Rechargeable LiPo Battery

Nominal Capacity: 10000mAh

Nominal Voltage: 22.2V

Energy: 222Wh

Energy Density: 183.01Wh/kg

Charge Cut-off Voltage: 25.2V

Discharge Cut-off Voltage: 18V

Standard Charge Current: 0.2C (2000mA)

Max Charge Current: 1C (10000mA)

Standard Discharge Current: 0.2C (2000mA)

Max Continuous Discharge Current: 25C (250A)

Max Peak Discharge Current: 50C (500A)

Cycle Life: More Than 500 Times

Dimensions: 47 × 71 × 170 mm

Weight: 1213g

Charge Temperature Range: 0°C to 45°C

Discharge Temperature Range: -20°C to 65°C

Storage Temperature Range:

• -20℃~25℃: More than 12 months
• -20℃~45℃: Less than 3 months
• -20℃~60 ℃: Less than 1 month

Connector: Bare wires, XT90 anti spark, AS150, XT150 anti spark etc

Key Features – 6S Lipo 10000mAh Battery

⭐ High Energy Density for Longer Flight Time

Built with advanced lithium-polymer chemistry, this battery delivers an exceptional 183.01 Wh/kg energy density, extending flight time and reducing payload weight. UAV operators achieve longer missions per charge, improving spraying efficiency and reducing downtime.

⚡ Powerful 25C Continuous Discharge for Heavy-Load Operations

A robust 25C continuous discharge capability provides the high current required during UAV takeoff, rapid ascent, and high-load agricultural spraying. This ensures reliable power output even under demanding working conditions.

🎯 Superior Cell Consistency for Stability & Efficiency

The battery pack is assembled with closely matched cells, providing:

• Reduced internal losses

• Higher total efficiency

• Better heat distribution

• Significantly improved stability during flight

Excellent cell uniformity enhances precision attitude control, making spraying patterns more accurate for agricultural drones.

🔄 Long Cycle Life — Still 80% Capacity After 500+ Cycles

Engineered for long-term durability, the pack maintains over 80% of its initial capacity after 500 charge cycles. This greatly reduces operating costs and ensures consistent performance across seasons of intensive agricultural work.

🔧 Full Customization Options Available

Support for OEM & ODM customization, including:

• Voltage options (LiPo / LiHV)

• Capacity customization

• Connector and terminal customization

• Private label, stickers, and branding

❓ FAQ – Frequently Asked Questions

1, What does 25c mean on a lipo battery?

A: A “25C” rating on a LiPo battery means its maximum continuous discharge rate is 25 times the battery’s capacity. For example, the 10000mAh battery with 25C can safely deliver up to 250A continuously (10000mAh × 25 = 250,000mA = 250A).

2, Do two 3s lipos equal a 6s?

A: Yes, connecting two 3S LiPo batteries in series will give you the voltage of a 6S pack. However, the capacity (mAh) remains the same, and you must ensure both packs have the same capacity, discharge rate, and charge level for safe use

3, How to charge a dead lipo battery?

A: Charging a dead LiPo battery is not recommended—if a pack has dropped below its safe voltage, it may be damaged and unsafe to recover. The safest approach is to use a balance charger’s LiPo recovery mode (if available) or properly dispose of the pack if it cannot reach minimum voltage.

4, Why lipo battery swell?

A: LiPo batteries swell mainly due to internal gas buildup caused by overcharging, over-discharging, excessive heat, physical damage, or age-related electrolyte breakdown. This gas (mostly CO₂) pushes the foil pouch outward, and a swollen LiPo is unsafe, has reduced performance, and should never be used or charged again.

5, Who is the battery manufacturer?

A: Cestpower is one of china lipo battery manufacturer​, the 6s 10000mAh lipo battery is manufactured by Cestpower completely.

Cestpower High Discharge LiPo Battery Model List

Note:

HV: means the battery is high voltage, 3.8V or 3.85V

SS: means solid state battery

SR: means Smart battery, meanwhile it is waterproof and support CAN & bluetooth

SV: means it is smart battery and high voltage.
