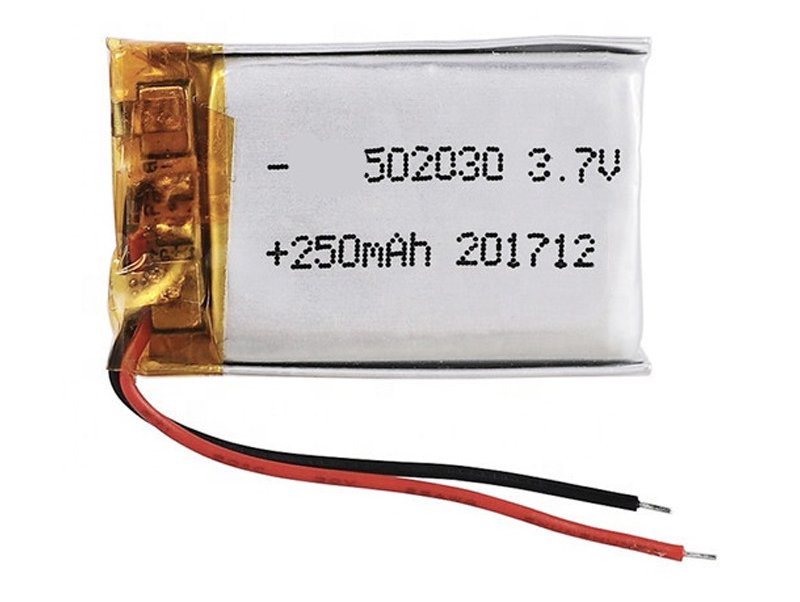

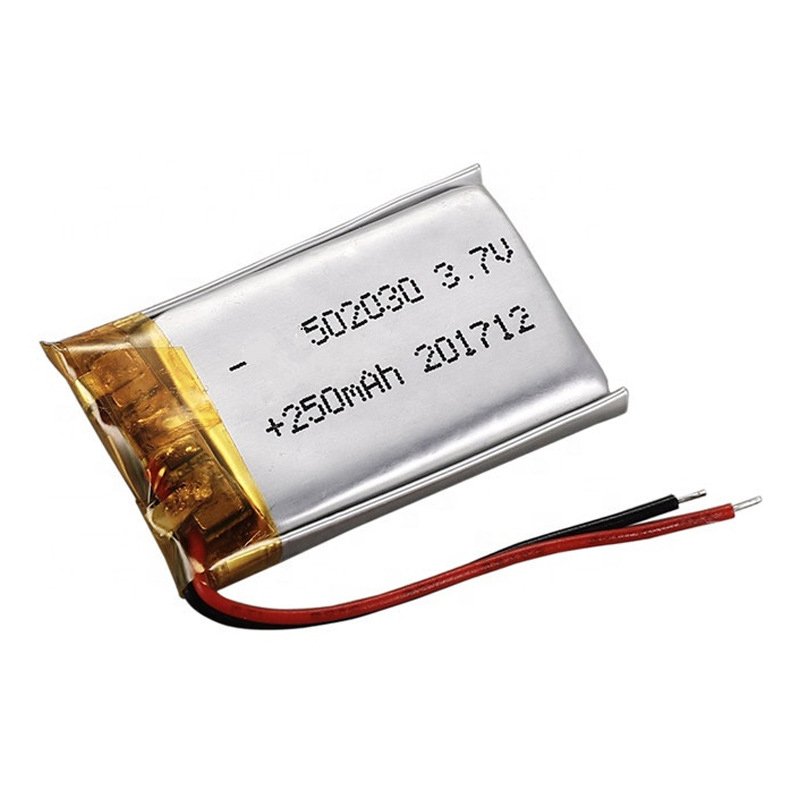

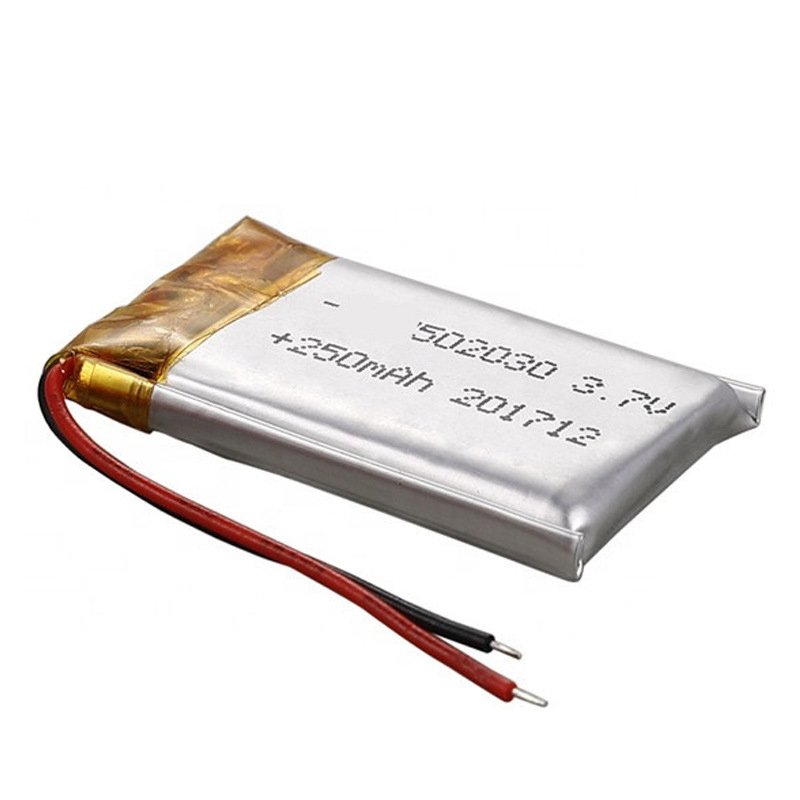

3.7V 502030 250mAh Lithium Ion Polymer Battery with PCB
502030 250mAh Technical Information
Model: 502030 250mAh
Battery Type: Rechargeable Li-Polymer Battery
Nominal Capacity: 250mAh
Nominal Voltage: 3.7V
Nominal Energy: 0.925Wh
Charge Cut-off Voltage: 4.2V
Discharge Cut-off Voltage: Typically 3.0V, Minimum 2.75V
Standard Charge Current: 0.2C (50mA)
Max Charge Current: 1C (250mA)
Standard Discharge Current: 0.2C (50mA)
Max Continuous Discharge Current: 1C (250mA)
Max Peak Discharge Current: 2C (500mA)
Internal Resistance: Less than 120mΩ
Cycle Life: More Than 500 Times
Dimensions: 5 × 20 × 30 mm
Weight: 7.5g
Charge Temperature Range: 0°C to 45°C
Discharge Temperature Range: -20°C to 65°C
Storage Temperature Range:
- -20℃~25℃: More than 12 months
- -20℃~45℃: Less than 3 months
- -20℃~60 ℃: Less than 1 month
PCB/PCM: Yes
Connector: Bare wires or optional with JST, Molex etc
Application: 502030 250mAh is commonly used in wearables, Bluetooth modules, fitness trackers, smart cards, mini sensors, rc toys, power bank, tablets, medical equipment and IoT devices etc
Cestpower Li-Polymer Battery Model List
Model Name | Nominal Capacity | Thickness (±0.2mm) | Width (±0.5mm) | Length (±0.5mm) | Weight (±5%) | Max Internal Resistance |
2mm~3mm Thickness | ||||||
| 241828 | 80mAh | 2.4mm | 18mm | 28mm | 2.4g | 320mΩ |
| 252030 | 100mAh | 2.5mm | 20mm | 30mm | 3g | 260mΩ |
| 283256 | 500mAh | 2.8mm | 32mm | 56mm | 15g | 80mΩ |
3mm~4mm Thickness | ||||||
| 301324 | 80mAh | 3.0mm | 13mm | 24mm | 2.4g | 320mΩ |
| 301730 | 100mAh | 3.0mm | 17mm | 30mm | 3g | 260mΩ |
| 302020 | 95mAh | 3.0mm | 20mm | 20mm | 2.9g | 260mΩ |
| 302025 | 110mAh | 3.0mm | 20mm | 25mm | 2.9g | 250mΩ |
| 302030 | 120mAh | 3.0mm | 20mm | 30mm | 3.6g | 240mΩ |
| 302530 | 170mAh | 3.0mm | 25mm | 30mm | 5.1g | 200mΩ |
| 302533 | 210mAh | 3.0mm | 25mm | 33mm | 6.3g | 150mΩ |
| 302535 | 220mAh | 3.0mm | 25mm | 35mm | 6.6g | 130mΩ |
| 302574 | 560mAh | 3.0mm | 25mm | 74mm | 16.8g | 90mΩ |
| 302934 | 280mAh | 3.0mm | 29mm | 34mm | 8.4g | 130mΩ |
| 303040 | 310mAh | 3.0mm | 30mm | 30mm | 9.3g | 110mΩ |
| 303048 | 450mAh | 3.0mm | 30mm | 48mm | 13.5g | 90mΩ |
| 303450 | 480mAh | 3.0mm | 34mm | 50mm | 14.4g | 80mΩ |
| 303759 | 650mAh | 3.0mm | 37mm | 59mm | 19.5g | 80mΩ |
| 303840 | 400mAh | 3.0mm | 38mm | 40mm | 12g | 90mΩ |
| 322025 | 130mAh | 3.2mm | 20mm | 25mm | 3.9g | 240mΩ |
| 322238 | 230mAh | 3.2mm | 22.5mm | 38mm | 6.9g | 120mΩ |
| 332025 | 130mAh | 3.3mm | 20mm | 25mm | 3.9g | 240mΩ |
| 336263 | 1400mAh | 3.3mm | 62mm | 63mm | 42g | 60mΩ |
| 342530 | 220mAh | 3.4mm | 25mm | 30mm | 6.6g | 130mΩ |
| 351423 | 90mAh | 3.5mm | 14mm | 23mm | 2.7g | 300mΩ |
| 351522 | 120mAh | 3.5mm | 15mm | 22mm | 3.6g | 240mΩ |
| 351660 | 300mAh | 3.5mm | 16mm | 60mm | 9g | 120mΩ |
| 351729 | 130mAh | 3.5mm | 17mm | 29mm | 3.9g | 220mΩ |
| 351752 | 275mAh | 3.5mm | 17mm | 52mm | 8.25g | 120mΩ |
| 352073 | 450mAh | 3.5mm | 20mm | 73mm | 13.5g | 100mΩ |
| 352775 | 600mAh | 3.5mm | 27mm | 75mm | 18g | 80mΩ |
| 352830 | 270mAh | 3.5mm | 28mm | 30mm | 8.1g | 120mΩ |
| 353030 | 280mAh | 3.5mm | 30mm | 30mm | 8.4g | 120mΩ |
| 353035 | 300mAh | 3.5mm | 30mm | 35mm | 9g | 120mΩ |
| 353045 | 480mAh | 3.5mm | 30mm | 480mm | 14.4g | 100mΩ |
| 354355 | 800mAh | 3.5mm | 43mm | 55mm | 24g | 80mΩ |
| 355771 | 1600mAh | 3.5mm | 57mm | 71mm | 48g | 60mΩ |
| 363450 | 500mAh | 3.6mm | 34mm | 50mm | 15g | 80mΩ |
| 382746 | 450mAh | 3.8mm | 27mm | 46mm | 13.5g | 100mΩ |
| 383533 | 270mAh | 3.8mm | 35mm | 33mm | 8.1g | 120mΩ |
| 392260 | 500mAh | 3.9mm | 22mm | 60mm | 15g | 80mΩ |
| 393447 | 650mAh | 3.9mm | 34mm | 47mm | 19.5g | 80mΩ |
4mm~5mm Thickness | ||||||
| 400930 | 85mAh | 4.0mm | 9mm | 30mm | 2.6g | 310mΩ |
| 401015 | 42mAh | 4.0mm | 10mm | 15mm | 1.3g | 400mΩ |
| 401020 | 55mAh | 4.0mm | 10mm | 20mm | 1.7g | 350mΩ |
| 401025 | 70mAh | 4.0mm | 10mm | 25mm | 2.1g | 300mΩ |
| 401030 | 90mAh | 4.0mm | 10mm | 30mm | 2.7g | 300mΩ |
| 401035 | 110mAh | 4.0mm | 10mm | 35mm | 3.3g | 260mΩ |
| 401214 | 43mAh | 4.0mm | 12mm | 14mm | 1.3g | 400mΩ |
| 401225 | 100mAh | 4.0mm | 12mm | 25mm | 3g | 270mΩ |
| 401230 | 110mAh | 4.0mm | 12mm | 30mm | 3.3g | 260mΩ |
| 401235 | 130mAh | 4.0mm | 12mm | 35mm | 3.9g | 250mΩ |
| 401525 | 105mAh | 4.0mm | 15mm | 25mm | 3.2g | 260mΩ |
| 401630 | 120mAh | 4.0mm | 16mm | 30mm | 3.6g | 255mΩ |
| 401725 | 110mAh | 4.0mm | 17mm | 25mm | 3.3g | 260mΩ |
| 401730 | 150mAh | 4.0mm | 17mm | 30mm | 4.5g | 180mΩ |
| 402020 | 125mAh | 4.0mm | 20mm | 20mm | 3.7g | 250mΩ |
| 402030 | 200mAh | 4.0mm | 20mm | 30mm | 6g | 150mΩ |
| 402040 | 280mAh | 4.0mm | 20mm | 41mm | 8.4g | 120mΩ |
| 402035 | 230mAh | 4.0mm | 20mm | 35mm | 6.9g | 120mΩ |
| 402045 | 300mAh | 4.0mm | 20mm | 45mm | 9g | 120mΩ |
| 402050 | 360mAh | 4.0mm | 20mm | 50mm | 10.8g | 120mΩ |
| 402755 | 700mAh | 4.0mm | 27mm | 55mm | 21g | 80mΩ |
| 403035 | 380mAh | 4.0mm | 30mm | 35mm | 11.4g | 100mΩ |
| 403035 | 400mAh | 4.0mm | 30mm | 35mm | 12g | 90mΩ |
| 403040 | 400mAh | 4.0mm | 30mm | 40mm | 12g | 100mΩ |
| 403040 | 500mAh | 4.0mm | 30mm | 40mm | 15g | 80mΩ |
| 403048 | 600mAh | 4.0mm | 30mm | 48mm | 18g | 80mΩ |
| 403055 | 600mAh | 4.0mm | 30mm | 55mm | 18g | 80mΩ |
| 403840 | 590mAh | 4.0mm | 38.3mm | 40mm | 17.7g | 80mΩ |
| 404355 | 900mAh | 4.0mm | 43mm | 55mm | 27g | 60mΩ |
| 405153 | 1000mAh | 4.0mm | 51mm | 53mm | 30g | 60mΩ |
| 422123 | 200mAh | 4.2mm | 21mm | 23mm | 6g | 150mΩ |
| 422224 | 200mAh | 4.2mm | 22mm | 24mm | 6g | 150mΩ |
| 433450 | 750mAh | 4.3mm | 34mm | 50mm | 22.5g | 60mΩ |
| 450840 | 100mAh | 4.5mm | 8mm | 40mm | 3g | 260mΩ |
| 451220 | 70mAh | 4.5mm | 12mm | 20mm | 2.1g | 320mΩ |
| 451348 | 300mAh | 4.5mm | 13mm | 48mm | 9g | 120mΩ |
| 451628 | 160mAh | 4.5mm | 16mm | 28mm | 4.8g | 180mΩ |
| 451730 | 180mAh | 4.5mm | 17mm | 30mm | 5.4g | 150mΩ |
| 451836 | 250mAh | 4.5mm | 18mm | 36mm | 7.5g | 120mΩ |
| 452428 | 300mAh | 4.5mm | 24mm | 28mm | 9g | 120mΩ |
| 452526 | 260mAh | 4.5mm | 25mm | 26mm | 7.8g | 120mΩ |
| 452535 | 350mAh | 4.5mm | 25mm | 35mm | 10.5g | 110mΩ |
| 453038 | 530mAh | 4.0mm | 30mm | 38mm | 15.9g | 80mΩ |
| 453040 | 530mAh | 4.5mm | 30mm | 40mm | 15.9g | 80mΩ |
| 453443 | 650mAh | 4.5mm | 34mm | 43mm | 19.5g | 80mΩ |
| 452030 | 220mAh | 4.5mm | 20mm | 30mm | 6.6g | 130mΩ |
| 452535 | 350mAh | 4.5mm | 25mm | 35mm | 10.5g | 100mΩ |
| 452540 | 480mAh | 4.5mm | 25mm | 40mm | 14.4g | 90mΩ |
| 464854 | 1400mAh | 4.6mm | 48mm | 54mm | 42g | 60mΩ |
| 472023 | 180mAh | 4.7mm | 20mm | 23mm | 5.4g | 150mΩ |
| 472329 | 250mAh | 4.7mm | 23mm | 29mm | 7.5g | 130mΩ |
| 473645 | 850mAh | 4.7mm | 36mm | 45mm | 25.5g | 80mΩ |
| 481445 | 250mAh | 4.8mm | 14mm | 45mm | 7.5g | 130mΩ |
| 481621 | 110mAh | 4.8mm | 16mm | 21mm | 3.3g | 240mΩ |
| 483030 | 400mAh | 4.8mm | 30mm | 30mm | 12g | 100mΩ |
| 483759 | 1000mAh | 4.8mm | 37mm | 59mm | 30g | 60mΩ |
| 484450 | 900mAh | 4.8mm | 44mm | 50mm | 27g | 60mΩ |
5mm~6mm Thickness | ||||||
| 501015 | 50mAh | 5mm | 10mm | 15mm | 1.5g | 350mΩ |
| 501020 | 65mAh | 5.0mm | 10mm | 20mm | 2g | 330mΩ |
| 501030 | 110mAh | 5.0mm | 10mm | 30mm | 3.3g | 240mΩ |
| 501035 | 140mAh | 5.0mm | 10mm | 35mm | 3.3g | 220mΩ |
| 501040 | 180mAh | 5.0mm | 10mm | 40mm | 5.4g | 150mΩ |
| 501140 | 200mAh | 5.0mm | 11mm | 40mm | 6g | 130mΩ |
| 501220 | 90mAh | 5.0mm | 12mm | 20mm | 2.7g | 300mΩ |
| 501225 | 110mAh | 5.0mm | 12mm | 25mm | 3.3g | 240mΩ |
| 501230 | 130mAh | 5.0mm | 12mm | 30mm | 3.9g | 230mΩ |
| 501235 | 160mAh | 5.0mm | 12mm | 35mm | 4.8g | 220mΩ |
| 501240 | 200mAh | 5.0mm | 12mm | 40mm | 6g | 140mΩ |
| 501340 | 300mAh | 5.0mm | 13mm | 40mm | 9g | 120mΩ |
| 501350 | 350mAh | 5.0mm | 13mm | 50mm | 10.5g | 110mΩ |
| 501426 | 150mAh | 5.0mm | 14mm | 26mm | 4.5g | 220mΩ |
| 501447 | 280mAh | 5.0mm | 14mm | 47mm | 8.4g | 120mΩ |
| 501520 | 105mAh | 5.0mm | 15mm | 20mm | 3.2g | 240mΩ |
| 501522 | 140mAh | 5.0mm | 15mm | 22mm | 4.2g | 225mΩ |
| 501525 | 150mAh | 5.0mm | 15mm | 25mm | 4.5g | 220mΩ |
| 501645 | 360mAh | 5.0mm | 16mm | 45mm | 10.8g | 120mΩ |
| 501665 | 500mAh | 5.0mm | 16mm | 65mm | 15g | 90mΩ |
| 501730 | 220mAh | 5.0mm | 17mm | 30mm | 6.6g | 130mΩ |
| 501879 | 800mAh | 5.0mm | 18mm | 79mm | 24g | 60mΩ |
| 501935 | 300mAh | 5.0mm | 19mm | 35mm | 9g | 120mΩ |
| 502020 | 160mAh | 5.0mm | 20mm | 20mm | 4.8g | 220mΩ |
| 502025 | 200mAh | 5.0mm | 20mm | 25mm | 6g | 130mΩ |
| 502027 | 260mAh | 5.0mm | 20mm | 26mm | 7.8g | 120mΩ |
| 502028 | 280mAh | 5.0mm | 20mm | 28mm | 8.4g | 120mΩ |
| 502030 | 250mAh | 5.0mm | 20mm | 30mm | 7.5g | 120mΩ |
| 502035 | 300mAh | 5.0mm | 20mm | 35mm | 9g | 120mΩ |
| 502035 | 350mAh | 5.2mm | 20mm | 35mm | 10.5g | 120mΩ |
| 502040 | 400mAh | 5.0mm | 20mm | 40mm | 12g | 100mΩ |
| 502045 | 450mAh | 5.0mm | 20mm | 45mm | 13.5g | 90mΩ |
| 502248 | 470mAh | 5.0mm | 22mm | 48mm | 14.1g | 80mΩ |
| 502248 | 500mAh | 5.0mm | 22mm | 48mm | 15g | 80mΩ |
| 502443 | 500mAh | 5.0mm | 24mm | 43mm | 15g | 90mΩ |
| 502528 | 320mAh | 5.0mm | 25mm | 28mm | 9.6g | 110mΩ |
| 502530 | 300mAh | 5.0mm | 25mm | 30mm | 9g | 120mΩ |
| 502535 | 400mAh | 5.0mm | 25mm | 35mm | 12g | 100mΩ |
| 502540 | 500mAh | 5.0mm | 25mm | 40mm | 15g | 90mΩ |
| 502835 | 480mAh | 5.0mm | 28mm | 35mm | 14.4g | 80mΩ |
| 502837 | 450mAh | 5.0mm | 27.5mm | 37mm | 13.5g | 80mΩ |
| 503035 | 400mAh | 5.0mm | 30mm | 35mm | 12g | 100mΩ |
| 503035 | 500mAh | 5.0mm | 30mm | 35mm | 15g | 80mΩ |
| 503040 | 600mAh | 5.0mm | 30mm | 40mm | 18g | 80mΩ |
| 503048 | 750mAh | 5.0mm | 30mm | 48mm | 22.5g | 80mΩ |
| 503759 | 1200mAh | 5.0mm | 37mm | 59mm | 36g | 60mΩ |
| 503759 | 1300mAh | 5.0mm | 37mm | 59mm | 39g | 60mΩ |
| 504045 | 900mAh | 5.0mm | 40mm | 45mm | 27g | 60mΩ |
| 512850 | 750mAh | 5.2mm | 27.5mm | 50mm | 22.5g | 80mΩ |
| 514045 | 1000mAh | 5.1mm | 40mm | 45mm | 30g | 60mΩ |
| 521222 | 90mAh | 5.2mm | 12mm | 22mm | 2.7g | 300mΩ |
| 523450 | 800mAh | 5.2mm | 34mm | 50mm | 24g | 60mΩ |
| 523450 | 950mAh | 5.2mm | 34mm | 50mm | 28.5g | 60mΩ |
| 523450 | 980mAh | 5.2mm | 34mm | 50mm | 29.4g | 60mΩ |
| 532035 | 330mAh | 5.3mm | 20mm | 35mm | 9.9g | 120mΩ |
| 532035 | 350mAh | 5.3mm | 20mm | 35mm | 10.5g | 100mΩ |
| 541363 | 450mAh | 5.4mm | 13mm | 63mm | 13.5g | 90mΩ |
| 551145 | 250mAh | 5.5mm | 11mm | 45mm | 7.5g | 120mΩ |
| 551521 | 130mAh | 5.5mm | 15mm | 21mm | 3.9g | 200mΩ |
| 552035 | 370mAh | 5.5mm | 20mm | 35mm | 11.1g | 100mΩ |
| 552248 | 600mAh | 5.5mm | 22mm | 48mm | 18g | 80mΩ |
| 552265 | 800mAh | 5.5mm | 22mm | 65mm | 24g | 60mΩ |
| 552531 | 500mAh | 5.5mm | 25mm | 31mm | 15g | 90mΩ |
| 552535 | 450mAh | 5.5mm | 25mm | 35mm | 13.5g | 90mΩ |
| 552540 | 550mAh | 5.5mm | 25mm | 40mm | 16.5g | 90mΩ |
| 553035 | 470mAh | 5.5mm | 30mm | 35mm | 14.1g | 90mΩ |
| 553040 | 500mAh | 5.5mm | 30mm | 40mm | 15g | 90mΩ |
| 553040 | 650mAh | 5.5mm | 30mm | 40mm | 19.5g | 80mΩ |
| 553048 | 850mAh | 5.5mm | 30mm | 48mm | 25.5g | 60mΩ |
| 553048 | 900mAh | 5.5mm | 30mm | 48mm | 27g | 60mΩ |
| 555152 | 1550mAh | 5.5mm | 51mm | 52mm | 46.5g | 50mΩ |
| 581933 | 380mAh | 5.8mm | 19mm | 33mm | 11.4g | 100mΩ |
| 582045 | 500mAh | 5.8mm | 20mm | 45mm | 15g | 80mΩ |
| 582728 | 400mAh | 5.8mm | 27mm | 28mm | 12g | 100mΩ |
| 583029 | 640mAh | 5.8mm | 30mm | 29mm | 19.2g | 80mΩ |
6mm~7mm Thickness | ||||||
| 601040 | 210mAh | 6.0mm | 10mm | 40mm | 6.3g | 140mΩ |
| 601220 | 110mAh | 6.0mm | 12mm | 20mm | 3.3g | 250mΩ |
| 601225 | 130mAh | 6.0mm | 12mm | 25mm | 3.9g | 240mΩ |
| 601230 | 200mAh | 6.0mm | 12mm | 30mm | 6g | 150mΩ |
| 601235 | 200mAh | 6.0mm | 12mm | 35mm | 6g | 150mΩ |
| 601447 | 380mAh | 6.0mm | 14mm | 47mm | 11.4g | 110mΩ |
| 601525 | 200mAh | 6.0mm | 15mm | 25mm | 6g | 130mΩ |
| 601546 | 400mAh | 6.0mm | 15mm | 46mm | 12g | 100mΩ |
| 601835 | 350mAh | 6.0mm | 18mm | 35mm | 10.5g | 110mΩ |
| 601842 | 420mAh | 6.0mm | 18mm | 42mm | 12.6g | 100mΩ |
| 601925 | 235mAh | 6.0mm | 19mm | 25mm | 7.05g | 150mΩ |
| 602020 | 180mAh | 6.0mm | 20mm | 20mm | 5.4g | 160mΩ |
| 602025 | 220mAh | 6.0mm | 20mm | 25mm | 6.6g | 150mΩ |
| 602030 | 300mAh | 6.0mm | 20mm | 30mm | 9g | 120mΩ |
| 602035 | 400mAh | 6.0mm | 20mm | 35mm | 12g | 100mΩ |
| 602035 | 400mAh | 6.0mm | 20mm | 35mm | 12g | 100mΩ |
| 602040 | 450mAh | 6.0mm | 20mm | 40mm | 13.5g | 100mΩ |
| 602040 | 450mAh | 6.0mm | 20mm | 40mm | 13.5g | 90mΩ |
| 602045 | 530mAh | 6.0mm | 20mm | 45mm | 15.9g | 80mΩ |
| 602050 | 500mAh | 6.0mm | 20mm | 50mm | 15g | 80mΩ |
| 602060 | 600mAh | 6.0mm | 20mm | 60mm | 18g | 80mΩ |
| 602225 | 250mAh | 6.0mm | 22mm | 25mm | 7.5g | 170mΩ |
| 602530 | 380mAh | 6.0mm | 25mm | 30mm | 11.4g | 100mΩ |
| 602525 | 300mAh | 6.0mm | 25mm | 25mm | 9g | 120mΩ |
| 602528 | 450mAh | 6.0mm | 25mm | 28mm | 13.5g | 100mΩ |
| 602530 | 300mAh | 6.0mm | 25mm | 30mm | 9g | 120mΩ |
| 602535 | 500mAh | 6.0mm | 25mm | 35mm | 15g | 90mΩ |
| 602570 | 1200mAh | 6.0mm | 25mm | 70mm | 36g | 60mΩ |
| 602844 | 800mAh | 6.0mm | 28mm | 44mm | 24g | 60mΩ |
| 602934 | 750mAh | 6.0mm | 29mm | 34mm | 22.5g | 80mΩ |
| 603030 | 500mAh | 6.0mm | 30mm | 30mm | 15g | 90mΩ |
| 603030 | 600mAh | 6.0mm | 30mm | 30mm | 18g | 80mΩ |
| 603040 | 600mAh | 6.0mm | 30mm | 40mm | 18g | 80mΩ |
| 603040 | 650mAh | 6.0mm | 30mm | 40mm | 19.5g | 80mΩ |
| 603040 | 680mAh | 6.0mm | 30mm | 40mm | 20.4g | 60mΩ |
| 603048 | 850mAh | 6.0mm | 30mm | 48mm | 25.5g | 60mΩ |
| 603450 | 1000mAh | 6.0mm | 34mm | 50mm | 30g | 60mΩ |
| 603759 | 1400mAh | 6.0mm | 37mm | 59mm | 42g | 60mΩ |
| 603759 | 1500mAh | 6.0mm | 37mm | 59mm | 45g | 50mΩ |
| 622829 | 600mAh | 6.2mm | 28mm | 29mm | 18g | 80mΩ |
| 612528 | 500mAh | 6.1mm | 25mm | 28mm | 15g | 90mΩ |
| 642045 | 500mAh | 6.4mm | 20mm | 46mm | 15g | 90mΩ |
| 643040 | 800mAh | 6.4mm | 30mm | 40mm | 24g | 60mΩ |
| 651447 | 450mAh | 6.5mm | 14mm | 47mm | 13.5g | 90mΩ |
| 652020 | 190mAh | 6.5mm | 20mm | 20mm | 5.7g | 150mΩ |
| 653030 | 670mAh | 6.5mm | 30mm | 30mm | 20.1g | 60mΩ |
| 653035 | 700mAh | 6.5mm | 30mm | 35mm | 21g | 80mΩ |
| 653670 | 1900mAh | 6.5mm | 36mm | 70mm | 57g | 50mΩ |
| 654045 | 1350mAh | 6.5mm | 40mm | 45mm | 40.5g | 50mΩ |
| 654065 | 2000mAh | 6.5mm | 40mm | 65mm | 60g | 50mΩ |
| 662551 | 950mAh | 6.6mm | 25mm | 51mm | 28.5g | 60mΩ |
| 681215 | 85mAh | 6.8mm | 12mm | 15mm | 2.6g | 310mΩ |
| 681966 | 900mAh | 6.8mm | 19mm | 66mm | 27g | 60mΩ |
| 682030 | 350mAh | 6.8mm | 20mm | 30mm | 10.5g | 120mΩ |
| 682045 | 560mAh | 6.8mm | 20mm | 45mm | 16.8g | 80mΩ |
| 683231 | 800mAh | 6.8mm | 32mm | 31mm | 24g | 60mΩ |
| 684045 | 1630mAh | 6.8mm | 40mm | 45mm | 48.9g | 50mΩ |
7mm~8mm Thickness | ||||||
| 701230 | 220mAh | 7.0mm | 12mm | 30mm | 6.6g | 150mΩ |
| 701245 | 350mAh | 7.0mm | 12mm | 45mm | 11g | 110mΩ |
| 701345 | 400mAh | 7.0mm | 13mm | 45mm | 12g | 100mΩ |
| 701420 | 160mAh | 7.0mm | 14mm | 20mm | 4.8g | 180mΩ |
| 701438 | 320mAh | 7.0mm | 14mm | 38mm | 9.6g | 120mΩ |
| 701525 | 240mAh | 7.0mm | 15mm | 25mm | 7.2g | 130mΩ |
| 701540 | 450mAh | 7.0mm | 15mm | 40mm | 14g | 90mΩ |
| 701658 | 700mAh | 7.0mm | 16mm | 58mm | 21g | 80mΩ |
| 701665 | 800mAh | 7.0mm | 16mm | 65mm | 24g | 60mΩ |
| 702030 | 400mAh | 7.0mm | 20mm | 30mm | 11.4g | 100mΩ |
| 702025 | 280mAh | 7.0mm | 20mm | 25mm | 8.4g | 130mΩ |
| 702035 | 520mAh | 7.0mm | 20mm | 35mm | 15.6g | 75mΩ |
| 702040 | 500mAh | 7.0mm | 20mm | 40mm | 15g | 80mΩ |
| 702045 | 600mAh | 7.0mm | 20mm | 45mm | 18g | 80mΩ |
| 702050 | 700mAh | 7.0mm | 20mm | 50mm | 21g | 80mΩ |
| 702233 | 450mAh | 7.0mm | 22mm | 33mm | 13.5g | 90mΩ |
| 702336 | 680mAh | 7.0mm | 23mm | 36mm | 20.4g | 80mΩ |
| 702535 | 600mAh | 7.0mm | 25mm | 35mm | 18g | 80mΩ |
| 703048 | 1000mAh | 7.0mm | 30mm | 48mm | 30g | 60mΩ |
| 703443 | 1050mAh | 7.0mm | 34mm | 43mm | 31.5g | 60mΩ |
| 703450 | 1200mAh | 7.0mm | 34mm | 50mm | 36g | 60mΩ |
| 703450 | 1400mAh | 7.0mm | 34mm | 50mm | 42g | 60mΩ |
| 703650 | 1600mAh | 7.0mm | 36mm | 50mm | 48g | 60mΩ |
| 704045 | 1000mAh | 7.0mm | 40mm | 45mm | 30g | 60mΩ |
| 704050 | 1600mAh | 7.0mm | 40mm | 50mm | 48g | 60mΩ |
| 704055 | 1780mAh | 7.0mm | 40mm | 55mm | 53.4g | 60mΩ |
| 732336 | 600mAh | 7.3mm | 23mm | 36mm | 18g | 80mΩ |
| 751435 | 310mAh | 7.5mm | 14mm | 35mm | 9.3g | 120mΩ |
| 751524 | 220mAh | 7.5mm | 15mm | 24mm | 6.6g | 130mΩ |
| 701546 | 450mAh | 7.0mm | 15mm | 46mm | 13.5g | 100mΩ |
| 751426 | 240mAh | 7.5mm | 14mm | 26mm | 7.2g | 130mΩ |
| 751546 | 480mAh | 7.5mm | 15mm | 46mm | 14.4g | 80mΩ |
| 751640 | 420mAh | 7.5mm | 16mm | 40mm | 12.6g | 100mΩ |
| 751835 | 450mAh | 7.5mm | 18mm | 35mm | 13.5g | 80mΩ |
| 752030 | 400mAh | 7.5mm | 20mm | 30mm | 12g | 100mΩ |
| 752035 | 500mAh | 7.5mm | 20mm | 35mm | 15g | 80mΩ |
| 752050 | 700mAh | 7.5mm | 20mm | 50mm | 21g | 60mΩ |
| 752055 | 900mAh | 7.5mm | 20mm | 55mm | 27g | 60mΩ |
| 752065 | 1100mAh | 7.5mm | 20mm | 65mm | 33g | 60mΩ |
| 752228 | 400mAh | 7.5mm | 22mm | 28mm | 12g | 100mΩ |
| 752540 | 750mAh | 7.5mm | 25mm | 40mm | 22.5g | 60mΩ |
| 753035 | 750mAh | 7.5mm | 30mm | 35mm | 22.5g | 60mΩ |
| 753040 | 980mAh | 7.5mm | 30mm | 40mm | 29.4g | 60mΩ |
| 753042 | 850mAh | 7.5mm | 30mm | 42mm | 25.5g | 60mΩ |
| 753048 | 1100mAh | 7.5mm | 30mm | 48mm | 33g | 60mΩ |
| 753447 | 1200mAh | 7.5mm | 34mm | 47mm | 36g | 60mΩ |
| 762252 | 850mAh | 7.6mm | 22mm | 52mm | 25.5g | 60mΩ |
| 791850 | 750mAh | 7.9mm | 18mm | 50mm | 22.5g | 60mΩ |
8mm~9mm Thickness | ||||||
| 801325 | 200mAh | 8.0mm | 13mm | 25mm | 6g | 130mΩ |
| 801350 | 500mAh | 8.0mm | 13mm | 50mm | 15g | 90mΩ |
| 801730 | 360mAh | 8.0mm | 17mm | 30mm | 10.8g | 100mΩ |
| 801738 | 450mAh | 8.0mm | 17mm | 38mm | 13.5g | 80mΩ |
| 802020 | 240mAh | 8.0mm | 20mm | 20mm | 7.2g | 130mΩ |
| 802022 | 290mAh | 8.0mm | 20mm | 22mm | 8.7g | 120mΩ |
| 802030 | 400mAh | 8.0mm | 20mm | 30mm | 12g | 100mΩ |
| 802035 | 500mAh | 8.0mm | 20mm | 35mm | 15g | 80mΩ |
| 802040 | 600mAh | 8.0mm | 20mm | 40mm | 18g | 80mΩ |
| 802045 | 700mAh | 8.0mm | 20mm | 45mm | 21g | 80mΩ |
| 802528 | 500mAh | 8.0mm | 25mm | 28mm | 15g | 80mΩ |
| 802525 | 450mAh | 8.0mm | 25mm | 25mm | 13.5g | 90mΩ |
| 802535 | 700mAh | 8.0mm | 25mm | 35mm | 21g | 75mΩ |
| 802540 | 850mAh | 8.0mm | 25mm | 40mm | 26g | 60mΩ |
| 802746 | 1000mAh | 8.0mm | 27mm | 46mm | 30g | 60mΩ |
| 802845 | 1000mAh | 8.0mm | 28mm | 45mm | 30g | 60mΩ |
| 803035 | 1000mAh | 8.0mm | 30mm | 35mm | 30g | 60mΩ |
| 803040 | 1000mAh | 8.0mm | 30mm | 40mm | 30g | 60mΩ |
| 803048 | 1150mAh | 8.0mm | 30mm | 48mm | 34.5g | 60mΩ |
| 803048 | 1200mAh | 8.0mm | 30mm | 48mm | 36g | 60mΩ |
| 803443 | 1200mAh | 8.0mm | 34mm | 43mm | 36g | 60mΩ |
| 803450 | 1500mAh | 8.0mm | 34mm | 50mm | 45g | 50mΩ |
| 803540 | 1000mAh | 8.0mm | 35mm | 40mm | 30g | 60mΩ |
| 803558 | 1500mAh | 8.0mm | 35mm | 58mm | 45g | 50mΩ |
| 803838 | 1200mAh | 8.0mm | 38mm | 38mm | 36g | 60mΩ |
| 804050 | 1800mAh | 8.0mm | 40mm | 50mm | 54g | 50mΩ |
| 804450 | 1850mAh | 8.0mm | 44mm | 50mm | 55.5g | 50mΩ |
| 805252 | 2500mAh | 8.0mm | 52mm | 52mm | 75g | 50mΩ |
| 832025 | 330mAh | 8.3mm | 20mm | 25mm | 9.9g | 120mΩ |
| 832528 | 500mAh | 8.3mm | 25mm | 28mm | 15g | 90mΩ |
| 833042 | 1100mAh | 8.3mm | 30mm | 42mm | 33g | 60mΩ |
| 851640 | 600mAh | 8.5mm | 16mm | 40mm | 18g | 80mΩ |
| 851663 | 950mAh | 8.5mm | 16mm | 63mm | 28.5g | 60mΩ |
| 851742 | 580mAh | 8.5mm | 17mm | 40mm | 17.4g | 80mΩ |
| 852025 | 350mAh | 8.5mm | 20mm | 25mm | 10.5g | 120mΩ |
| 852525 | 480mAh | 8.5mm | 25mm | 25mm | 14.4g | 90mΩ |
| 853030 | 700mAh | 8.5mm | 30mm | 30mm | 21g | 80mΩ |
| 862030 | 500mAh | 8.6mm | 20mm | 30mm | 15g | 90mΩ |
9mm~10mm Thickness | ||||||
| 901640 | 550mAh | 9.0mm | 16mm | 40mm | 16.5g | 85mΩ |
| 901855 | 950mAh | 9.0mm | 18mm | 55mm | 28.5g | 60mΩ |
| 902025 | 400mAh | 9.0mm | 20mm | 25mm | 12g | 90mΩ |
| 902030 | 500mAh | 9.0mm | 20mm | 30mm | 15g | 90mΩ |
| 902035 | 600mAh | 9.0mm | 20mm | 35mm | 18g | 80mΩ |
| 902045 | 820mAh | 9.0mm | 20mm | 45mm | 24.6g | 60mΩ |
| 902040 | 700mAh | 9.0mm | 20mm | 40mm | 21g | 80mΩ |
| 902050 | 850mAh | 9.0mm | 20mm | 50mm | 25.5g | 60mΩ |
| 902248 | 1050mAh | 9.0mm | 22mm | 48mm | 31.5g | 60mΩ |
| 902432 | 680mAh | 9.0mm | 24mm | 32mm | 20.4g | 80mΩ |
| 902535 | 750mAh | 9.0mm | 25mm | 35mm | 22.5g | 80mΩ |
| 902540 | 900mAh | 9.0mm | 25mm | 40mm | 27g | 60mΩ |
| 902540 | 950mAh | 9.0mm | 25mm | 40mm | 28.5g | 60mΩ |
| 902830 | 700mAh | 9.0mm | 28mm | 30mm | 21g | 80mΩ |
| 903048 | 1350mAh | 9.0mm | 30mm | 48mm | 40.5g | 50mΩ |
| 952035 | 650mAh | 9.5mm | 20mm | 35mm | 19.5g | 80mΩ |
| 952040 | 770mAh | 9.5mm | 20mm | 40mm | 23.1g | 80mΩ |
| 952777 | 2300mAh | 9.5mm | 27mm | 77mm | 69g | 50mΩ |
| 952435 | 700mAh | 9.5mm | 24mm | 35mm | 21g | 80mΩ |
| 953035 | 1050mAh | 9.5mm | 30mm | 35mm | 31.5g | 60mΩ |
| 972653 | 1500mAh | 9.7mm | 26mm | 53mm | 45g | 60mΩ |
10mm~11mm Thickness | ||||||
| 102035 | 650mAh | 10.0mm | 20mm | 35mm | 19.5g | 60mΩ |
| 102045 | 900mAh | 10.0mm | 20mm | 45mm | 27g | 60mΩ |
| 102050 | 1000mAh | 10.0mm | 20mm | 50mm | 30g | 60mΩ |
| 102248 | 1000mAh | 10.0mm | 22mm | 48mm | 30g | 60mΩ |
| 102535 | 800mAh | 10.0mm | 25mm | 35mm | 24g | 80mΩ |
| 102540 | 1100mAh | 10.0mm | 25mm | 40mm | 33g | 60mΩ |
| 102737 | 1000mAh | 10.0mm | 27mm | 37mm | 30g | 60mΩ |
| 102764 | 1950mAh | 10.0mm | 27mm | 64mm | 58.5g | 50mΩ |
| 103035 | 1100mAh | 10.0mm | 30mm | 35mm | 33g | 60mΩ |
| 103040 | 1200mAh | 10.0mm | 30mm | 40mm | 36g | 60mΩ |
| 103045 | 1500mAh | 10.0mm | 30mm | 45mm | 45g | 60mΩ |
| 103048 | 1500mAh | 10.0mm | 30mm | 48mm | 45g | 50mΩ |
| 103450 | 1800mAh | 10.0mm | 34mm | 50mm | 54g | 50mΩ |
| 103450 | 1950mAh | 10.0mm | 34mm | 50mm | 58.5g | 50mΩ |
| 103535 | 1300mAh | 10.0mm | 35mm | 35mm | 39g | 60mΩ |
| 103540 | 1350mAh | 10.0mm | 35mm | 40mm | 40.5g | 50mΩ |
| 103545 | 1700mAh | 10mm | 35mm | 45mm | 51g | 50mΩ |
| 103836 | 1300mAh | 10.0mm | 38mm | 36mm | 39g | 60mΩ |
| 105080 | 5000mAh | 10.0mm | 50mm | 80mm | 85g | 30mΩ |
More than 11mm Thickness | ||||||
| 112446 | 1200mAh | 11.0mm | 24mm | 46mm | 36g | 60mΩ |
| 112540 | 1100mAh | 11.0mm | 25mm | 40mm | 33g | 60mΩ |
| 113030 | 950mAh | 11.0mm | 30mm | 30mm | 28.5g | 80mΩ |
| 123046 | 1800mAh | 12.0mm | 30mm | 46mm | 54g | 50mΩ |
| 123345 | 1800mAh | 12.0mm | 33mm | 45mm | 54g | 50mΩ |
| 123636 | 1600mAh | 12.0mm | 36mm | 36mm | 48g | 50mΩ |
Contact us for more information of 502030 250mAh
