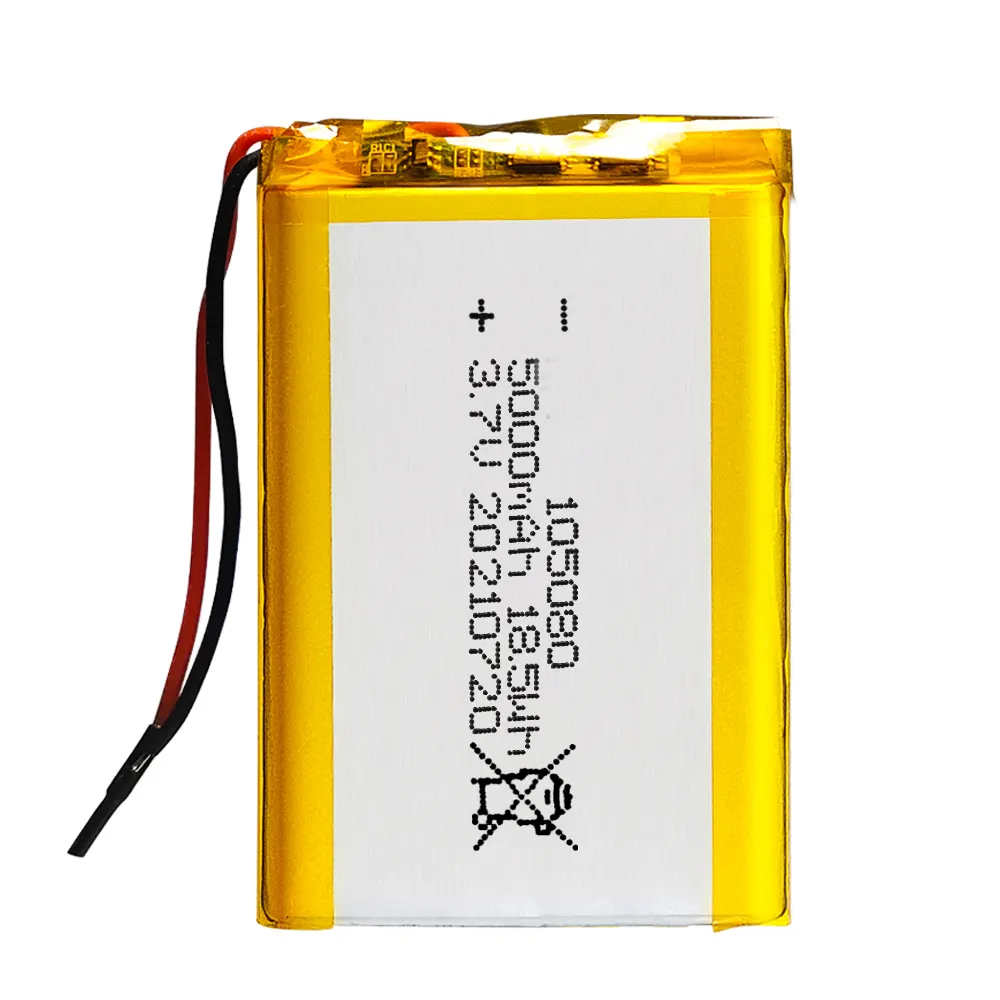

3.7V 105080 5000mAh LiPo Battery Pack with PCB
Summary of 3.7V 105080 5000mAh LiPo Battery Pack
The 3.7V 105080 5000mAh LiPo Battery Cell Pack with PCB delivers power, endurance, and efficiency in one compact unit. Designed for high-performance electronics, it combines exceptional energy density (185Wh/L) with long cycle life and excellent temperature adaptability. Despite its compact 40cm³ size, it provides 5000mAh capacity, outperforming cylindrical cells of similar volume by 20–30% more capacity.
Built with a protection circuit board (PCB), this lithium polymer battery ensures safe and stable performance, supporting 1C continuous discharge (5A) and 2C peak current, ideal for demanding devices. Even after 500 deep charge/discharge cycles, it retains over 4000mAh capacity, demonstrating its durability and reliability. Furthermore, it performs reliably at temperatures as low as -20°C, and can be custom-engineered for -40°C cold-weather operation, making it a perfect power solution for industrial, outdoor, and smart technology applications.
105080 5000mAh Technical Information
Model: 105080
Battery Type: Lithium Polymer Battery
Nominal Capacity: 5000mAh
Nominal Voltage: 3.7V
Nominal Energy: 18.5Wh
Energy Density: 217.65Wh/kg, 185Wh/L
Charge Cut-off Voltage: 4.2V
Discharge Cut-off Voltage: Typically 3.0V, Minimum 2.75V
Standard Charge Current: 0.2C (1000mA)
Max Charge Current: 1C (5000mA)
Standard Discharge Current: 0.2C (1000mA)
Max Continuous Discharge Current: 1C (5000mA)
Max Peak Discharge Current: 2C (10A)
Internal Resistance: Less than 70mΩ
Cycle Life: More Than 500 Times
Dimensions: 10 × 50 × 80 mm
Weight: 85g
Charge Temperature Range: 0°C to 45°C
Discharge Temperature Range: -20°C to 65°C
Storage Temperature Range:
- -20℃~25℃: More than 12 months
- -20℃~45℃: Less than 3 months
- -20℃~60 ℃: Less than 1 month
Key Features
🔋 High Capacity & Superior Energy Density
Engineered for energy-demanding devices, this 105080 LiPo battery delivers remarkable energy-to-size efficiency. Energy Density is 185Wh/L or 217.65Wh/kg, 20–30% higher capacity than equivalent cylindrical lithium batteries. Its compact size and large capacity make it ideal for portable electronics, medical devices, and smart equipment requiring long runtime within limited space.
🔁 Long Cycle Life & Reliable Performance
Built with premium-grade LiPo chemistry, this battery ensures exceptional cycle stability and lifespan, ≥4000mAh capacity retention after 500 cycles, Whether used in continuous operation or intermittent standby mode, the 105080 cell maintains long-lasting power output and excellent storage stability.
🌡️ Excellent Low-Temperature & Environmental Adaptability
Designed to withstand diverse conditions. This battery maintains high discharge performance in sub-zero conditions, ensuring consistent operation in harsh environments.
Standard operating range: -20°C to +60°C
Custom low-temperature option: Operable down to -40°C
Stable discharge curve across temperature ranges
Ideal for outdoor IoT devices, GPS trackers, and field monitoring systems
⚙️ High Discharge Rate & Efficient Power Output
The 3.7V 105080 5000mAh LiPo Battery supports powerful, stable energy delivery, Continuous discharge1C (5000mA), peak discharge 2C, Low heat generation for improved thermal efficiency. This makes it the perfect choice for devices that require instant high current without compromising on safety or longevity.
💼 Applications
The 3.7V 105080 5000mAh LiPo Battery with PCB is ideal for:
Industrial and smart IoT equipment
Portable medical or diagnostic instruments
GPS tracking and remote monitoring systems
Handheld communication and testing devices
Power tools and energy storage modules
Outdoor surveillance and security equipment
❓ FAQ – Frequently Asked Questions
Q1: Can this battery operate in cold environments?
A: Yes. It performs well at -20°C, and custom versions can function down to -40°C for extreme cold applications.
Q2: What is the discharge rate of this battery?
A: It supports 1C continuous discharge (5A) and 2C peak current, ensuring stable output for high-power devices.
Q3: Does it comply with safety and environmental standards?
A: Yes, it meets RoHS, UN38.3, and MSDS standards, ensuring both environmental compliance and transport safety.
Q4: How much space does the battery occupy?
A: The cell’s compact 40cm³ volume makes it ideal for space-limited designs without compromising energy performance.
Q5: Can I customize this battery?
A: Yes. Cestpower supports OEM customization for dimensions, connectors, capacity, and even special low-temperature versions.
