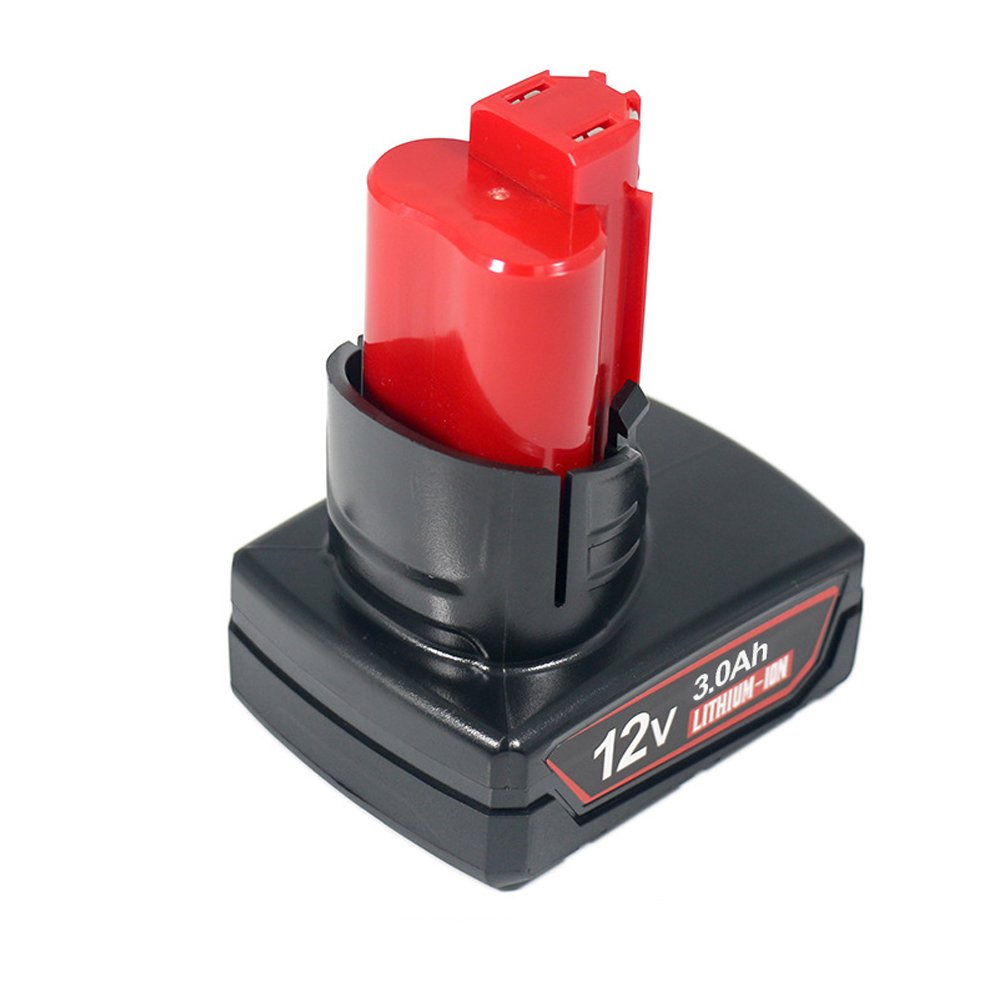

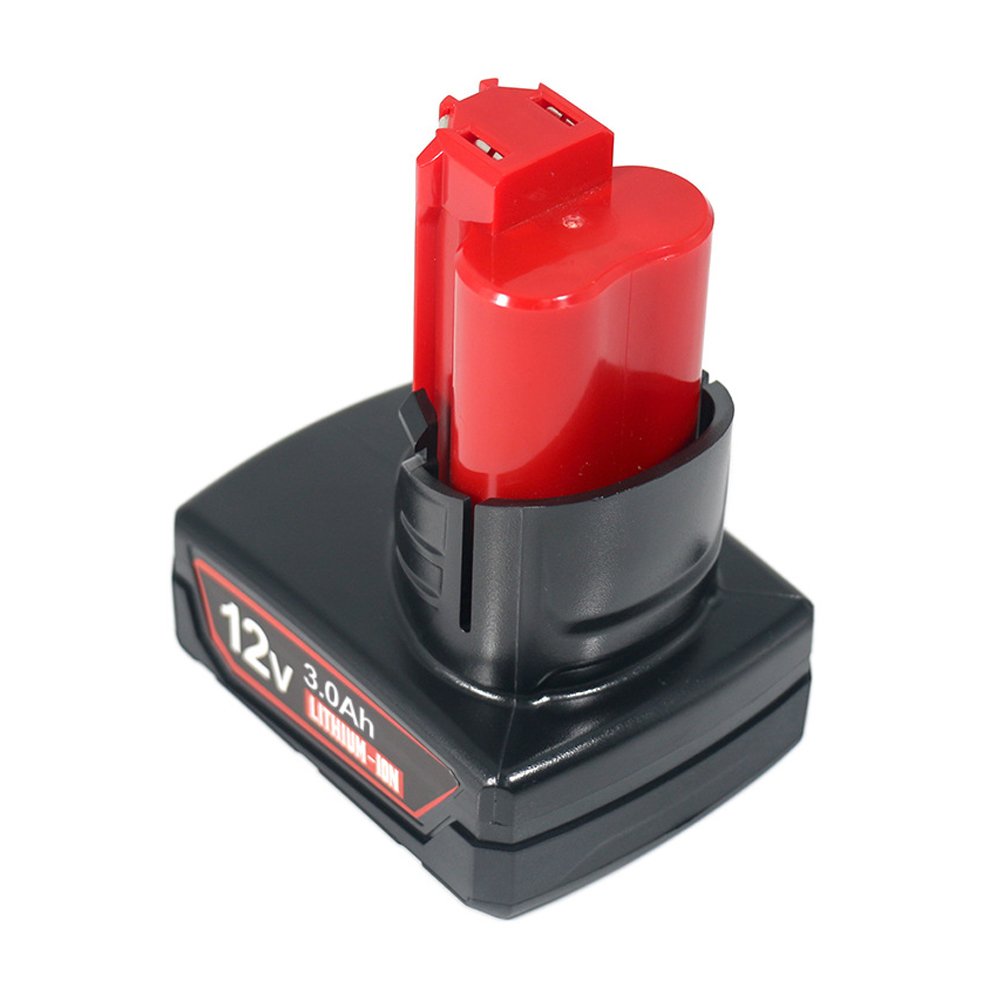

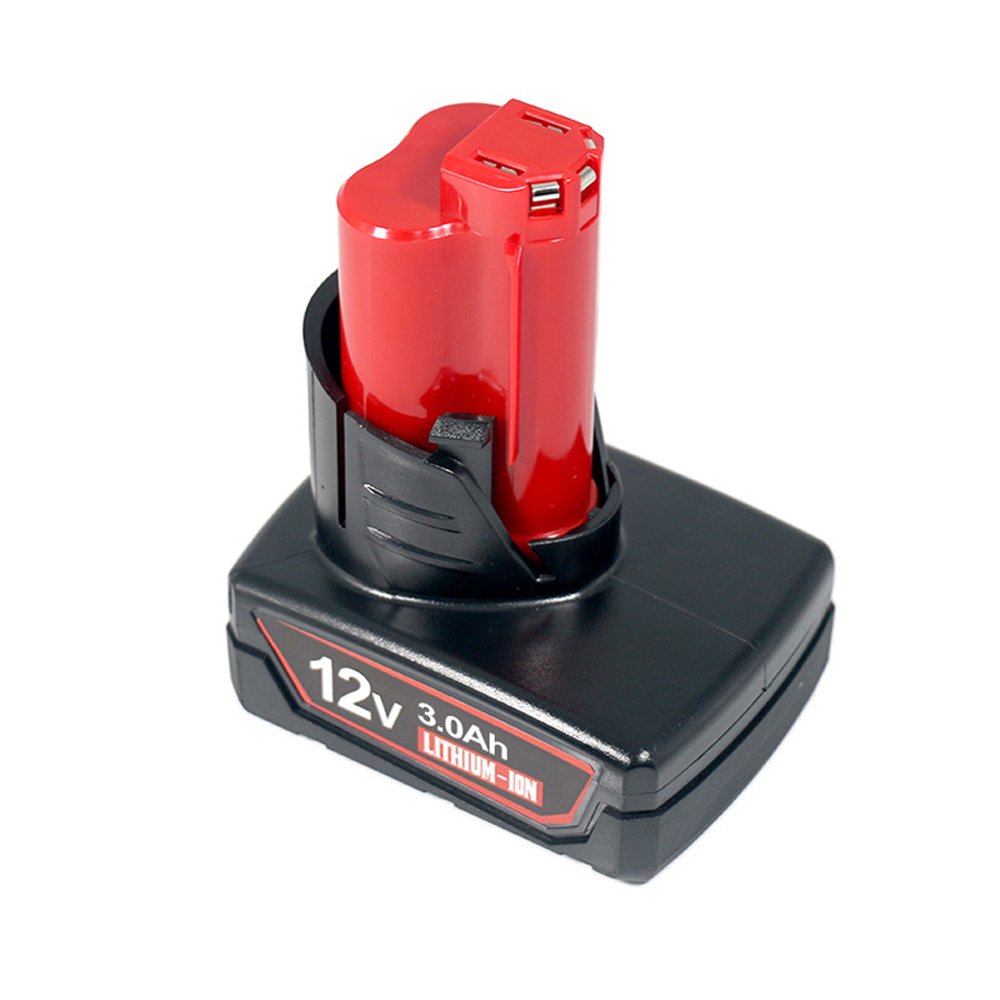

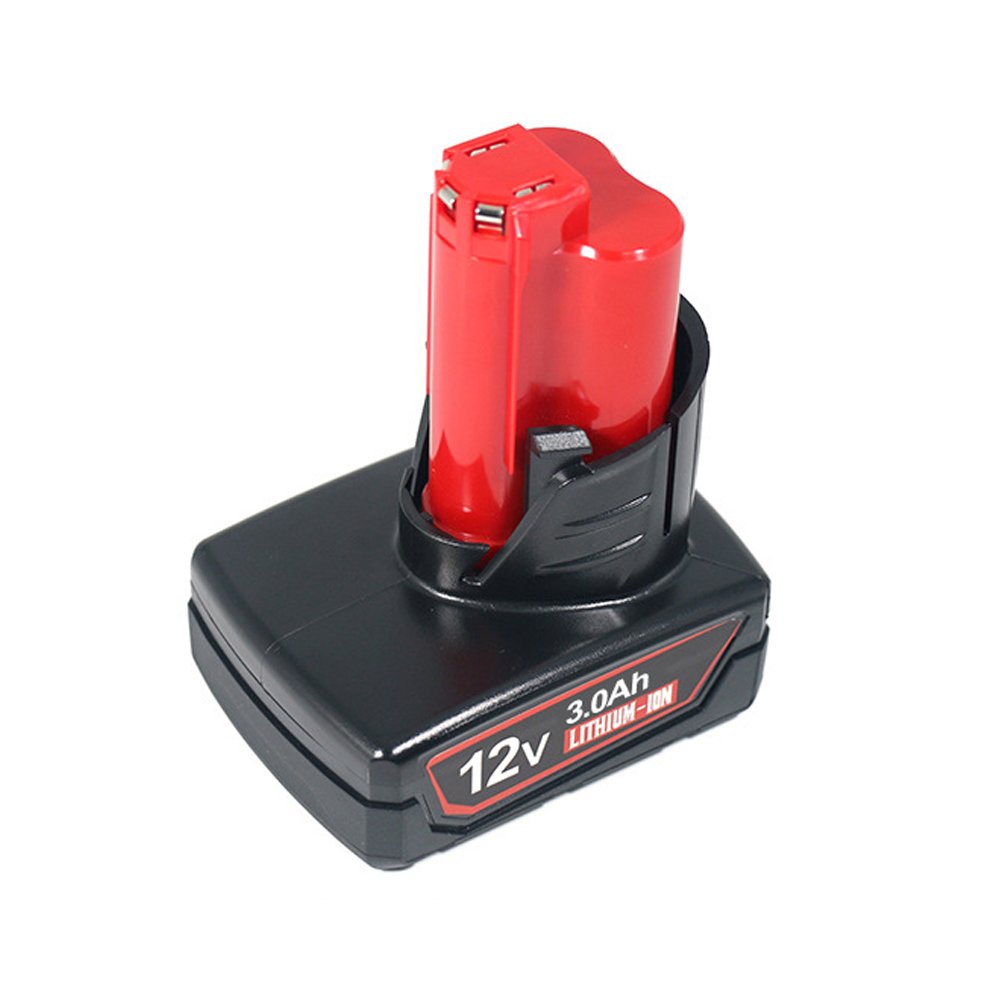

M12 12V 3.0Ah 3S2P Lithium-Ion Battery Replacement for Milwaukee
Description
M12 12V 3.0Ah 3S2P Lithium-Ion Battery Replacement for Milwaukee
Model: CPPB1230
Battery Type: Rechargeable Li-ion Battery
Nominal Capacity: 3000mAh
Nominal Voltage: 12V (11.1V)
Energy: 36Wh
Charge Cut-off Voltage: 12.6V
Discharge Cut-off Voltage: 8.4V
Standard Charge Current: 0.2C (600mA)
Max Charge Current: 1C (3000mA)
Standard Discharge Current: 0.2C (600mA)
Max Continuous Discharge Current: 7.5C (22.5A)
Max Peak Discharge Current: 15C (45A)
Cycle Life: More Than 500 Times
Dimensions: 66 × 89 × 110 mm
Weight: 380g
Charge Temperature Range: 0°C to 45°C
Discharge Temperature Range: -20°C to 65°C
Storage Temperature Range:
- -20℃~25℃: More than 12 months
- -20℃~45℃: Less than 3 months
- -20℃~60 ℃: Less than 1 month
Compatible Models: For Milwaukee M-12, 48-11-2401, 48-11-2402, 48-11-2420, 48-11-2430, 48-11-2440, 48-11-2460, 48-11-2411, 48-11-2412
Cestpower Power Tool Battery List for Milwaukee
Model Name | Nominal Voltage | Type | Nominal Capacity | Height (±0.5mm) | Width (±0.5mm) | Length (±0.5mm) | Weight (±5%) |
| CPPT1215 | 12V | 3S1P | 1.5Ah | 86mm | 46mm | 48mm | 204g |
| CPPT1220 | 12V | 3S1P | 2.0Ah | 86mm | 46mm | 48mm | 210g |
| CPPT1225 | 12V | 3S1P | 2.5Ah | 86mm | 46mm | 48mm | 215g |
| CPPT1230 | 12V | 3S1P | 3.0Ah | 86mm | 46mm | 48mm | 219g |
| CPPB1230 | 12V | 3S2P | 3.0Ah | 110mm | 66mm | 89mm | 380g |
| CPPB1240 | 12V | 3S2P | 4.0Ah | 110mm | 66mm | 89mm | 386g |
| CPPB1250 | 12V | 3S2P | 5.0Ah | 110mm | 66mm | 89mm | 395g |
| CPPB1260 | 12V | 3S2P | 6.0Ah | 110mm | 66mm | 89mm | 404g |
| CPPL1260 | 12V | 3S3P | 6.0Ah | 130mm | 66mm | 89mm | 585g |
| CPPL1290 | 12V | 3S3P | 9.0Ah | 130mm | 66mm | 89mm | 603g |
| CPPT1830 | 18V | 5S2P | 3.0Ah | 118mm | 75mm | 78mm | 665g |
| CPPT1840 | 18V | 5S2P | 4.0Ah | 118mm | 75mm | 78mm | 673g |
| CPPT1850 | 18V | 5S2P | 5.0Ah | 118mm | 75mm | 78mm | 682g |
| CPPT1860 | 18V | 5S2P | 6.0Ah | 118mm | 75mm | 78mm | 690g |
