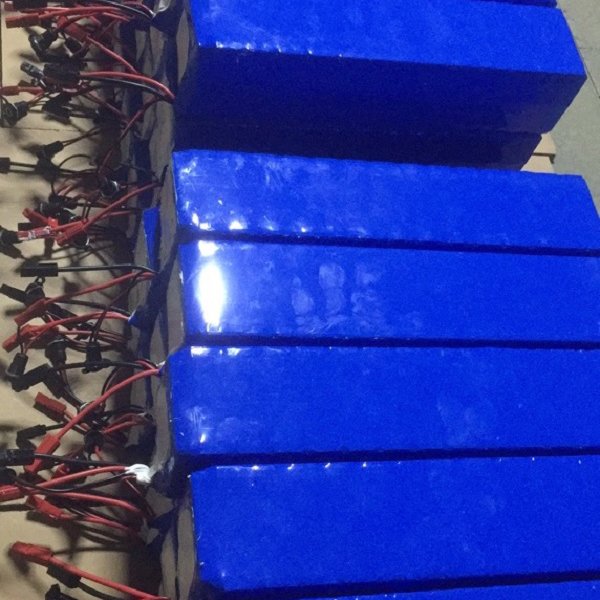

Electric Scooter Bike 36V Lithium Ion Battery Pack 10Ah 15Ah 20Ah 30Ah 40Ah 50Ah 100Ah

Description



lithium battery pack, it is built with cylindrical battery cell like 18650, 21700, 26650, 32700 and so on, it can be lithium ion material or lifepo4 material.

Mostly the battery pack is used for electric scooter, bike, wheelchair, motorcycle and many other vehicles.

customize shape to meet your battery slot.

Battery Cell: 21700 5000mAh 3C

Battery Type: Lithium ion Battery

Battery Pack: 10S4P 40 cells

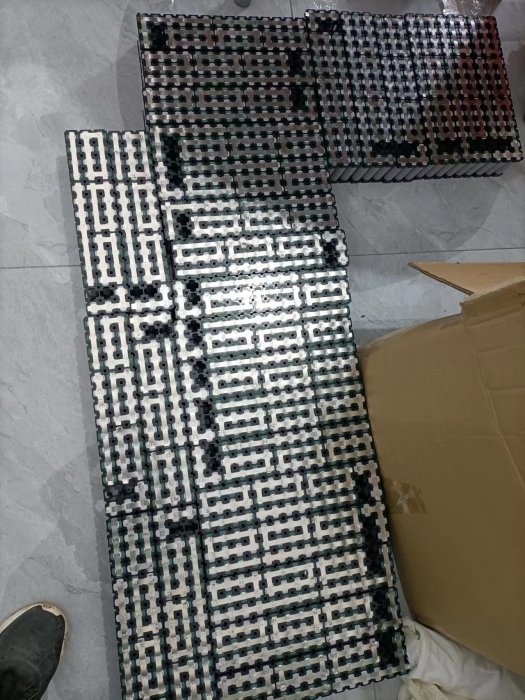

Battery Holder: 21700 holder 10*4

Nominal Voltage: 36V or customize

Charge Voltage: 42V

Cut-off Voltage: 27V

Nominal Capacity: 20Ah or customize

Minimum Capacity: 14.4Ah

Max Continuous Discharge Current: 20A or customize

Peak Discharge Current: 40A for 10 seconds

Max Charge Current: 10A or customize

BMS: 20A or customize

BMS Balancing: YES

Cycle Life Span: more than 500 times

Operating Temperature: -20 Deg to 60 Deg

Storage Temperature: -20 Deg to 50 Deg

Self Discharge: <3% per month

Dimension: 320 x 74 x 76 mm or customize

Shape: Rectangle or customize

Weight: About 3.3kg

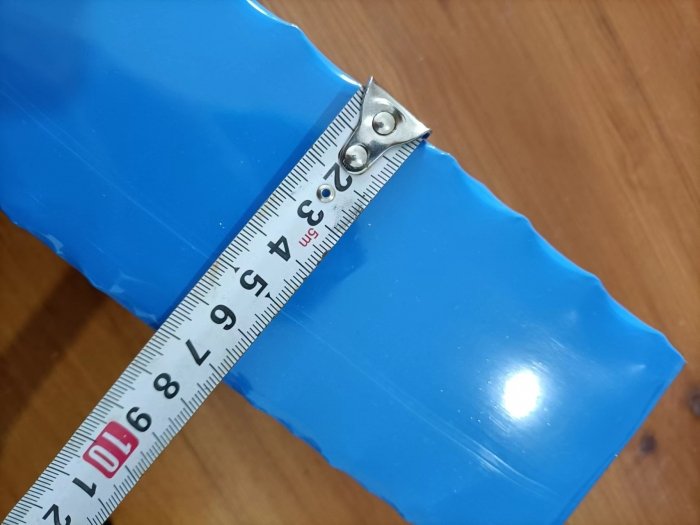

Heat Shrink PVC: Blue

White Glue: At the both side of battery pack

Discharge Connector: Anderson or specified

Charge Connector: DC 5521, 5525 or specified

Communication Protocol: CAN, I2C, SMBUS Optional

Appilication: Electric bicycle, scooter, wheelchair, tourist car etc

MOQ: 5 pieces

ODM OEM inquiry is welcomed
