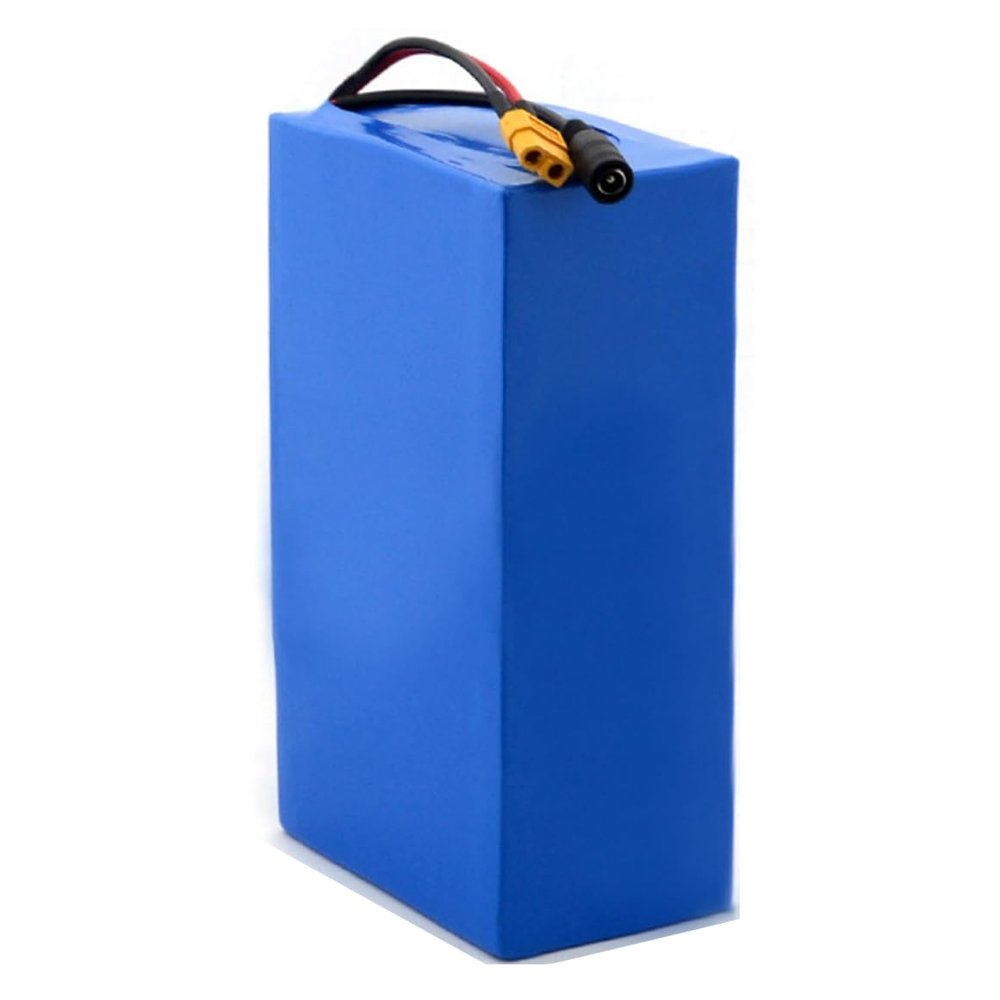

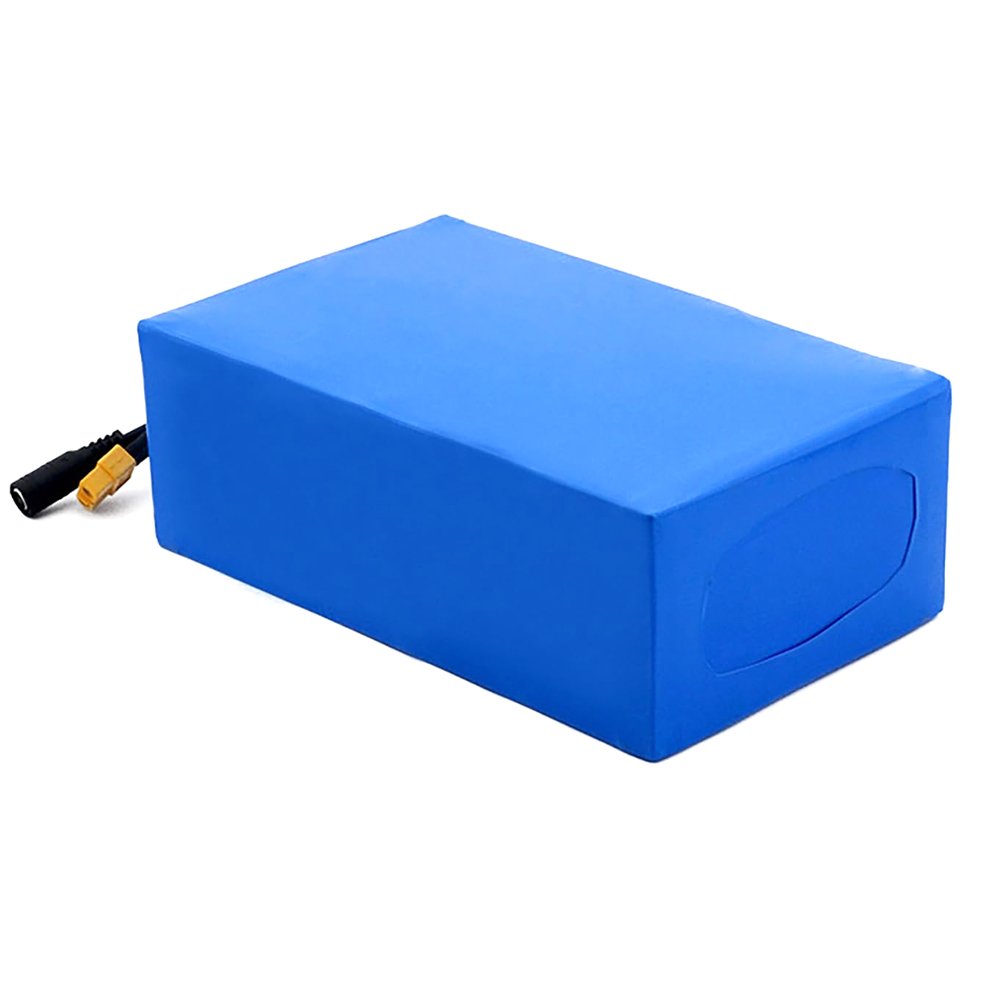

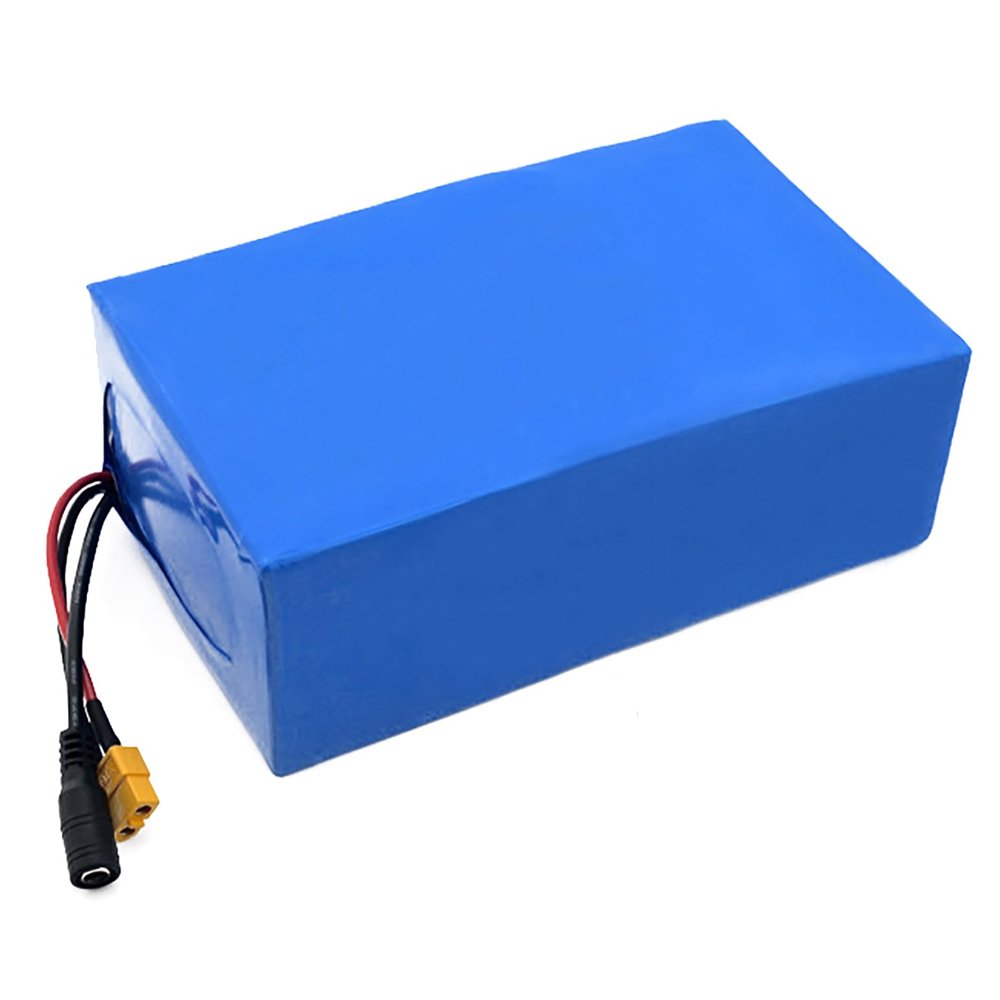

E Bike 48V 20Ah Lithium Battery Pack for Ebike
Description
Summary of Ebike 48V 20Ah Battery
🚴 E Bike 48V 20Ah Lithium Battery Pack for Ebike – High Density, Safe & Customizable Power
The E Bike 48V 20Ah Lithium Battery Pack for Ebike is a next-generation energy solution designed to deliver 5 times higher energy density than lead-acid batteries, dramatically reducing the weight burden on electric bikes. With low internal resistance, powerful continuous discharge, and advanced protection features, this lithium battery ensures longer rides, higher efficiency, and reduced energy loss. Perfect for outdoor and urban riders, it is also customizable in shape, voltage, capacity, and connectors to seamlessly integrate into different e-bike designs.
48V 20Ah Lithium Ion Battery Parameter
Name: 48V 20Ah Lithium Battery
Battery Cell: 21700 5000mAh
Connection: 13S4P
Nominal Voltage: 48V
Nominal Capacity: 20Ah
Energy: 960Wh
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 35.75V
Max Continuous Discharge Current: 20A (upgradeable)
Peak Discharge Current: 40A
Max Charging Current: 20A
Cycle Life: ≥500 Cycles @80% DOD
Weight: 4.2kg
Size: 283*102*78 mm
Charging Temperature: 0°C to 60°C
Operating Temperature: -20°C to 60°C
✅ Key Features & Advantages
Ultra-High Energy Density
Around 5× greater than lead-acid batteries, significantly cutting down e-bike weight. It means riders enjoy longer range, improved efficiency, and less power consumption on every journey.
Low Internal Resistance
Minimizes energy loss and heat generation. With less wasted energy, the battery runs cooler, lasts longer, and operates more efficiently.
High Discharge Current
Supports continuous 20A discharge (customizable to higher outputs). Perfect for demanding e-bike motors, steep climbs, or rapid acceleration without performance drops.
Comprehensive Safety Protection
Built-in BMS (Battery Management System) with overcharge, over-discharge, over-temperature, short-circuit, and reverse-polarity protection. Ensures maximum safety and reliability under all riding conditions.
Active Balancing Function
Prevents large voltage differences between cells. It guarantees stable performance, avoids sudden capacity loss, and extends overall battery lifespan.
Water & Dust Resistance
With waterproof materials, protection can reach IP65 rating. Ideal for outdoor, rainy, or dusty riding environments without performance compromise.
Long Cycle Life
Retains over 90% capacity even after one year of heavy use. Over 800–1000 charge cycles ensure long-term durability and reduced replacement costs.
Flexible Customization
Options for shapes (rectangular, cylindrical, triangular, arc), voltage, capacity, terminals, and OEM services (printing, labeling, packaging). Tailor-made to fit different e-bike brands and specific design requirements.
🚴 Advantages for E-Bike Riders
✅ Lightweight Riding Experience – Less weight compared to bulky lead-acid packs.
✅ Improved Efficiency – Lower energy waste and extended riding distance.
✅ High Power Output – Smooth acceleration and stable high-current performance.
✅ All-Weather Reliability – Waterproof and dustproof design for outdoor rides.
✅ Cost-Effective Longevity – Durable cycle life reduces replacement frequency.
❓ FAQ
Q1: How is this battery better than a lead-acid battery?
A1: It has around 5× higher energy density, which means lighter weight, higher efficiency, and much longer lifespan.
Q2: Can the discharge current be customized?
A2: Yes, the standard is 20A continuous discharge, but higher outputs can be designed based on motor requirements.
Q3: Is this battery safe for daily commuting?
A3: Absolutely. With multiple safety protections and active cell balancing, it ensures stable, secure, and long-lasting performance.
Q4: Can this battery work in rainy conditions?
A4: Yes, with IP65 waterproofing, it is highly suitable for outdoor and all-weather usage.
Q5: Do you offer OEM customization?
A5: Yes, we support custom sizes, shapes, voltage, connectors, labeling, and packaging to perfectly match your e-bike design.
