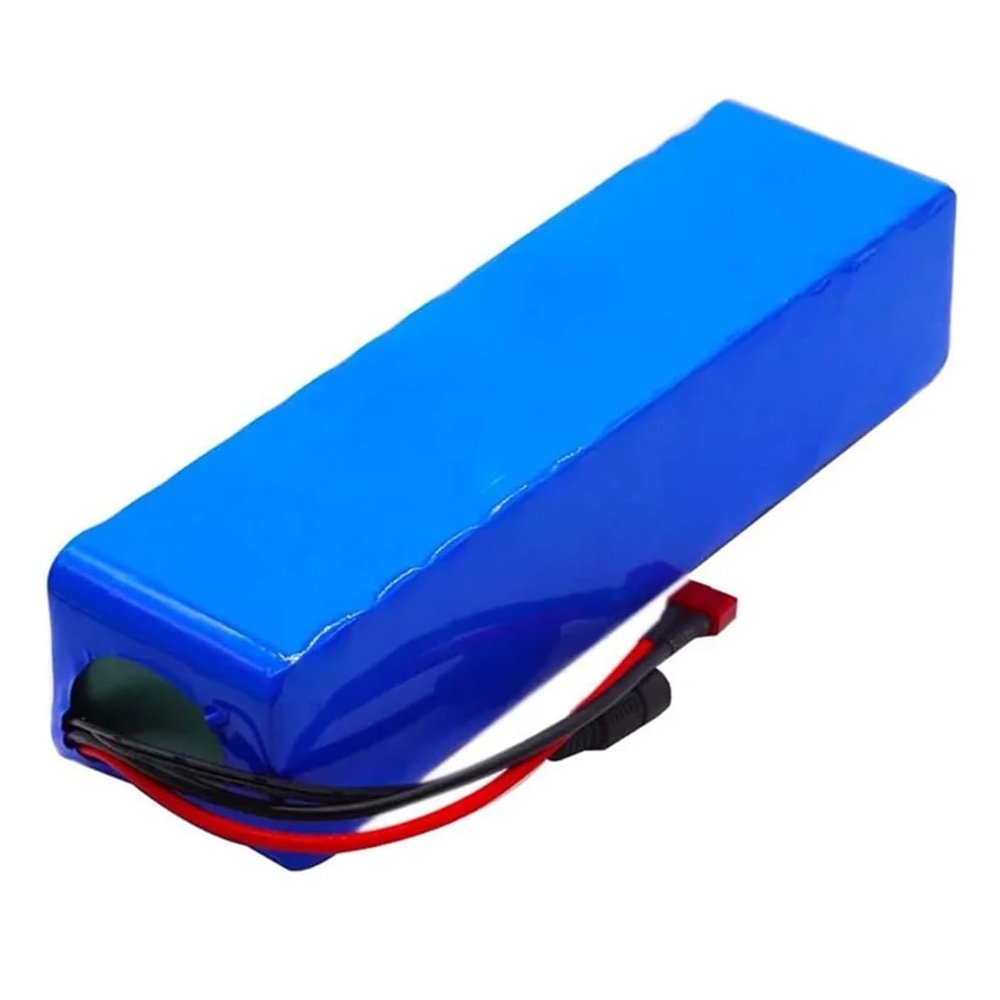

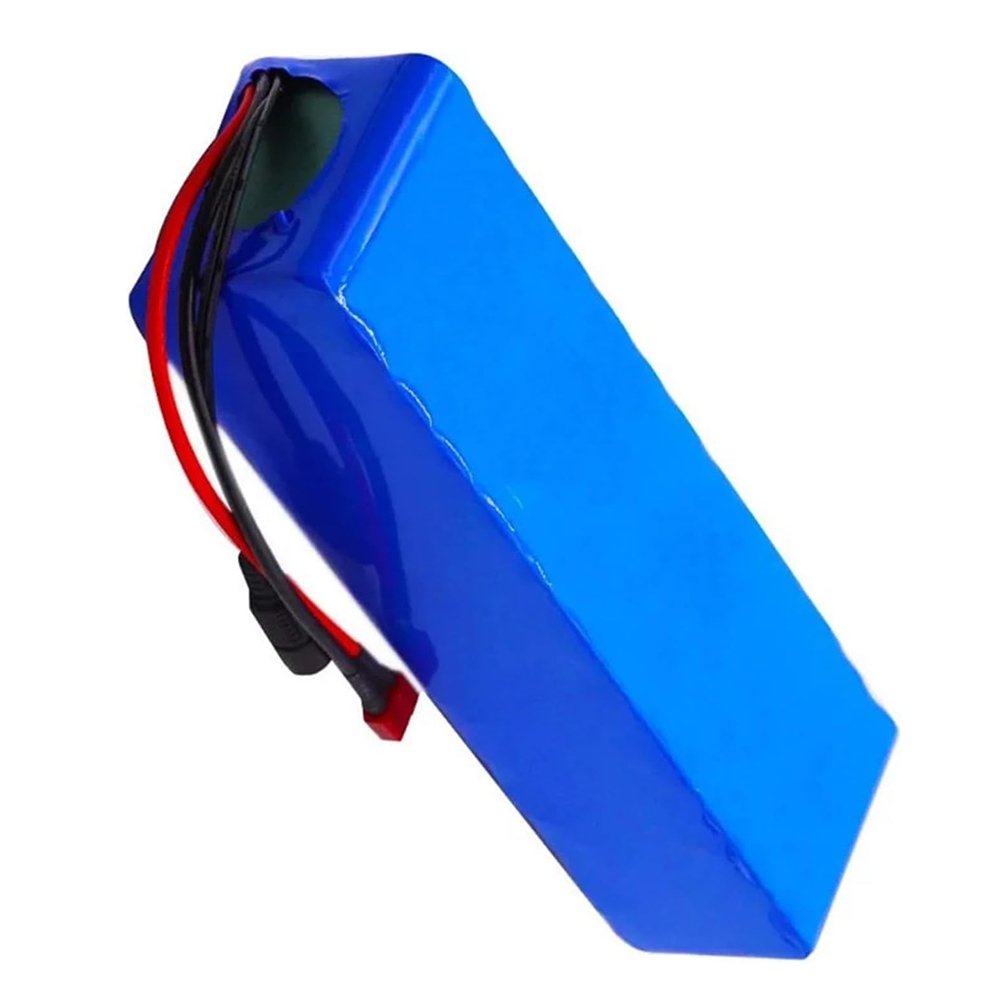

36V 10Ah Lithium Battery for Electric Bike Scooter
Description
Summary of Lithium Ion 36V 10Ah Ebike Battery
🚴 Electric BikeBattery 36V 10Ah – Light weight, High Density and Reliable Power
The 36V 10Ah Lithium Battery for Electric Bike and Scooter is designed to deliver 4–5 times higher energy density than traditional lead-acid batteries, dramatically reducing the weight burden on e-bikes and e-scooters. Built with 21700 5000mAh large-capacity cells, this battery offers greater efficiency, fewer parallel connections, and enhanced safety compared to 18650 cell packs. With low internal resistance, high discharge performance, advanced BMS protections, and IP65 waterproofing, it is the ideal choice for modern electric mobility solutions.
36V 10Ah Lithium Ion Battery Parameter
Name: 36V 10Ah Battery
Battery Cell: 21700 5000mAh
Connection: 10S2P
Nominal Voltage: 36V
Nominal Capacity: 20Ah
Energy: 720Wh
Charge Cut-off Voltage: 42V
Discharge Cut-off Voltage: 27.5V
Max Continuous Discharge Current: 10A (upgradeable)
Peak Discharge Current: 20A
Max Charging Current: 10A
Cycle Life: ≥500 Cycles @80% DOD
Weight: 1.8kg
Size: 227*48*76 mm
Charging Temperature: 0°C to 60°C
Operating Temperature: -20°C to 60°C
✅ Key Features & Advantages
Ultra-High Energy Density
4–5× higher than lead-acid batteries. Reduces overall vehicle weight, increases riding efficiency, and lowers energy consumption.
Advanced 21700 Cell Technology
Built with 21700 5000mAh 3C high-capacity cells. Compared with 18650 li ion cell, 21700 battery save more room. With 21700 cell,
it only need 2 row in parallel while 18650 requires at least 3 row, this way can reduce battery pack complexity and risks.
Low Internal Resistance
Efficient power delivery with less heat generation. Ensures cooler operation, minimal energy loss, and longer lifespan of both the battery and the vehicle.
Comprehensive Safety Protection
Integrated BMS with overcharge, over-discharge, over-temperature, short-circuit, and reverse-polarity protection. Guarantees secure and reliable performance in all riding conditions.
Active Balancing Function
Prevents voltage differences between cells. Maintains consistent capacity, avoids sudden drops in performance, and enhances long-term stability.
Outdoor-Ready Design
Can achieve IP65 waterproof and dustproof rating. Perfectly suited for scooters and bikes used in rain, mud, or dusty environments.
Long Cycle Life
Over 500 charge cycles, still maintaining 80%+ capacity. Cost-effective, durable, and reliable for daily commuting or recreational rides.
Customizable Options
Custom made solutions including shape (rectangular, cylindrical, triangular, arc), voltage, capacity, terminals, and OEM branding (printing, labeling, packaging). Perfect fit for manufacturers, brands, or end-users with specific needs.
🚴 Applications
✅ Electric bikes (commuting, mountain, and folding e-bikes)
✅ Electric scooters (urban and off-road models)
✅ Lightweight EV projects
✅ Mobility devices and personal transporters
✅ Outdoor and rugged terrain vehicles
❓ FAQ
Q1: Why choose a 36V 10Ah lithium battery over lead-acid?
A1: It is 4–5 times more energy-dense, lighter, more efficient, and has a much longer cycle life.
Q2: Is the battery waterproof?
A2: Yes, with IP65 protection, it can resist water and dust, making it suitable for outdoor use.
Q3: How long does this battery last?
A3: With over 500 cycles, it retains at least 80% capacity, ensuring long-term cost savings and reliable performance.
Q4: Can this battery be customized?
A4: Absolutely. We support custom sizes, shapes, voltage, capacity, terminals, and OEM services to match your design.
Q5: How fast is 36v 350w
A5: 36V 350W electric bike or scooter typically reaches speeds between 20 and 32 km/h (15-20 mph).
