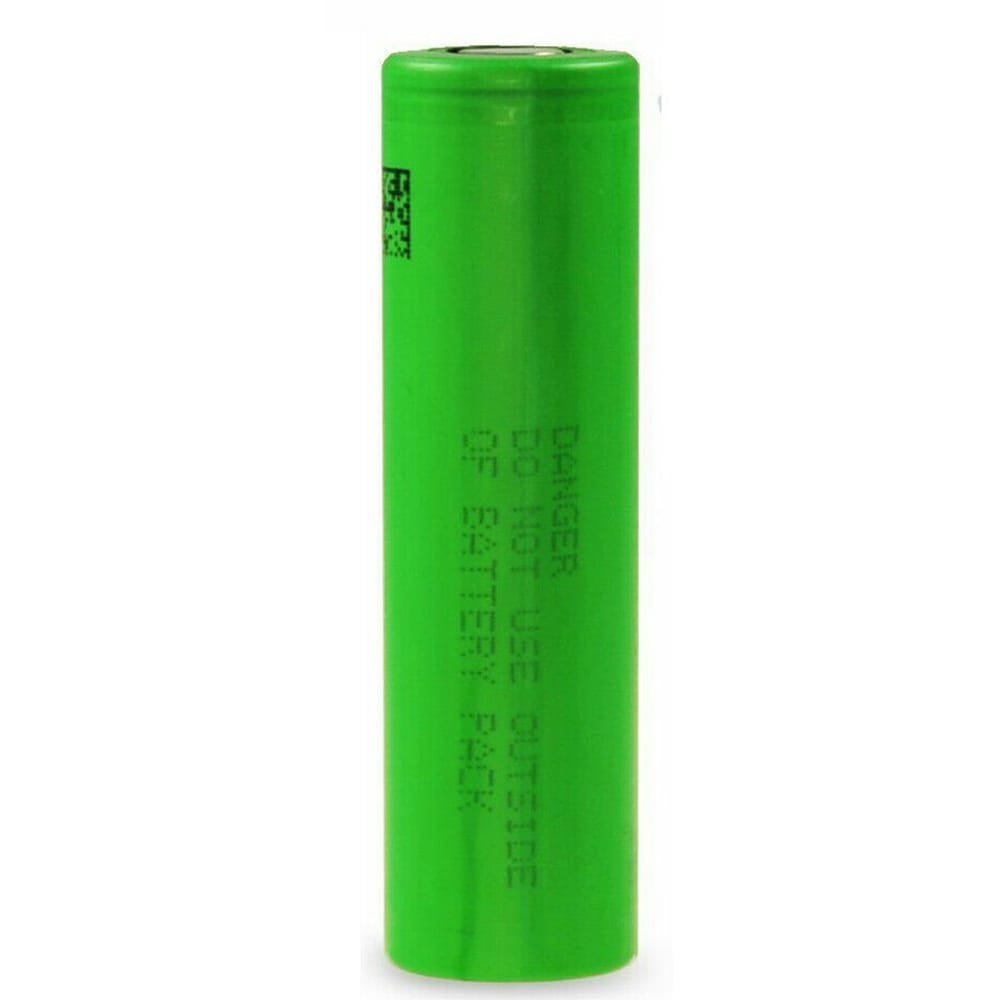

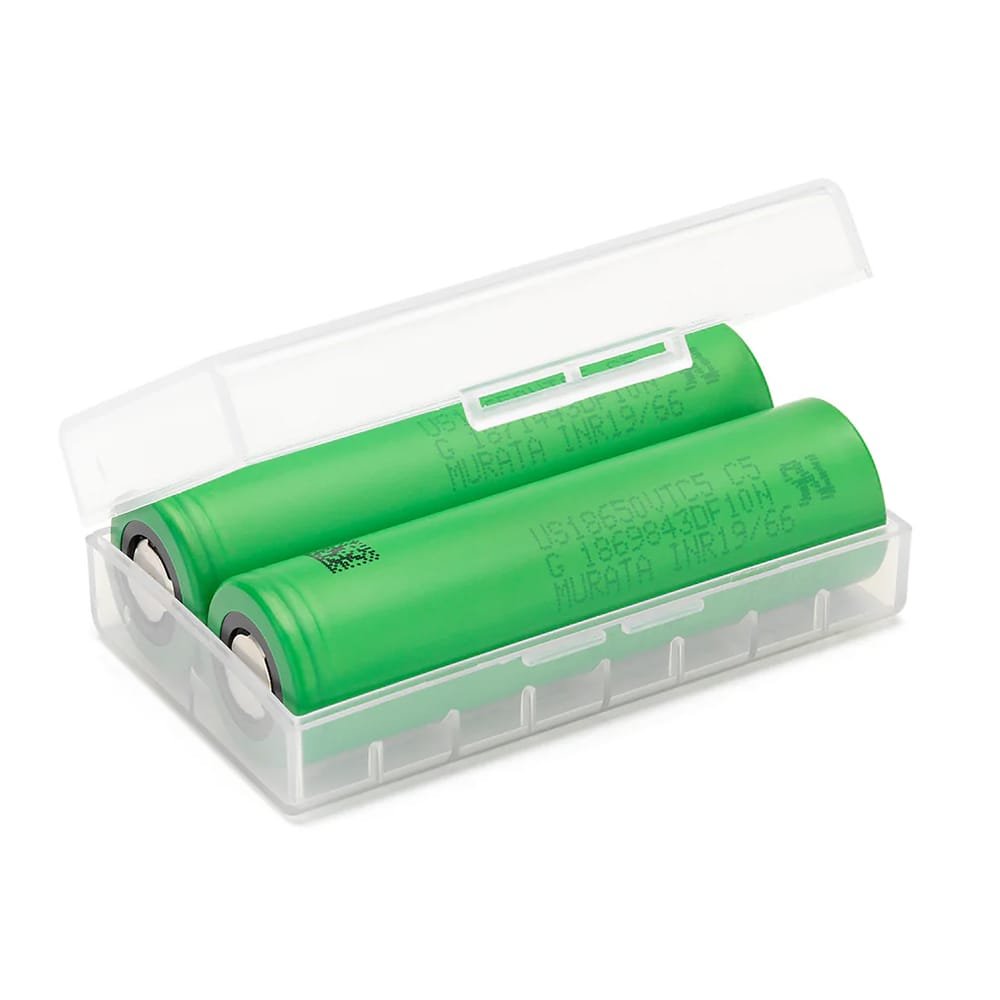

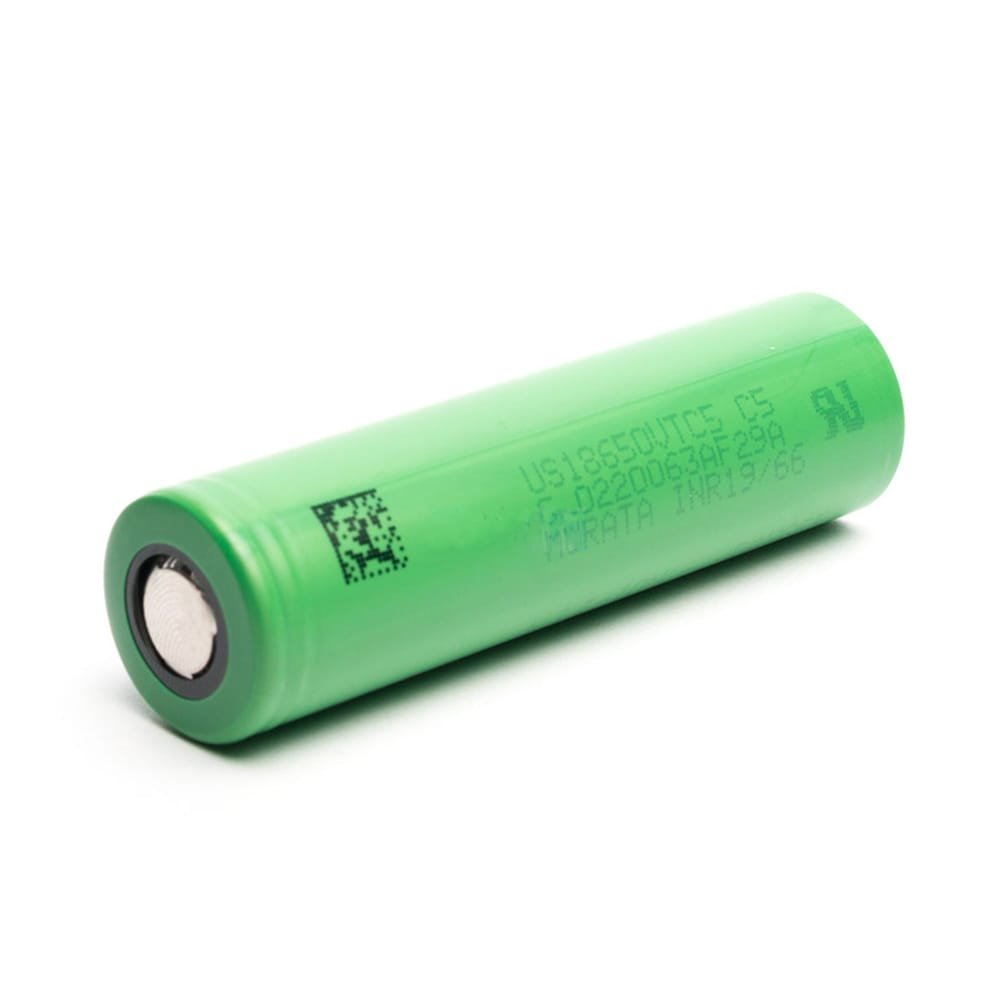

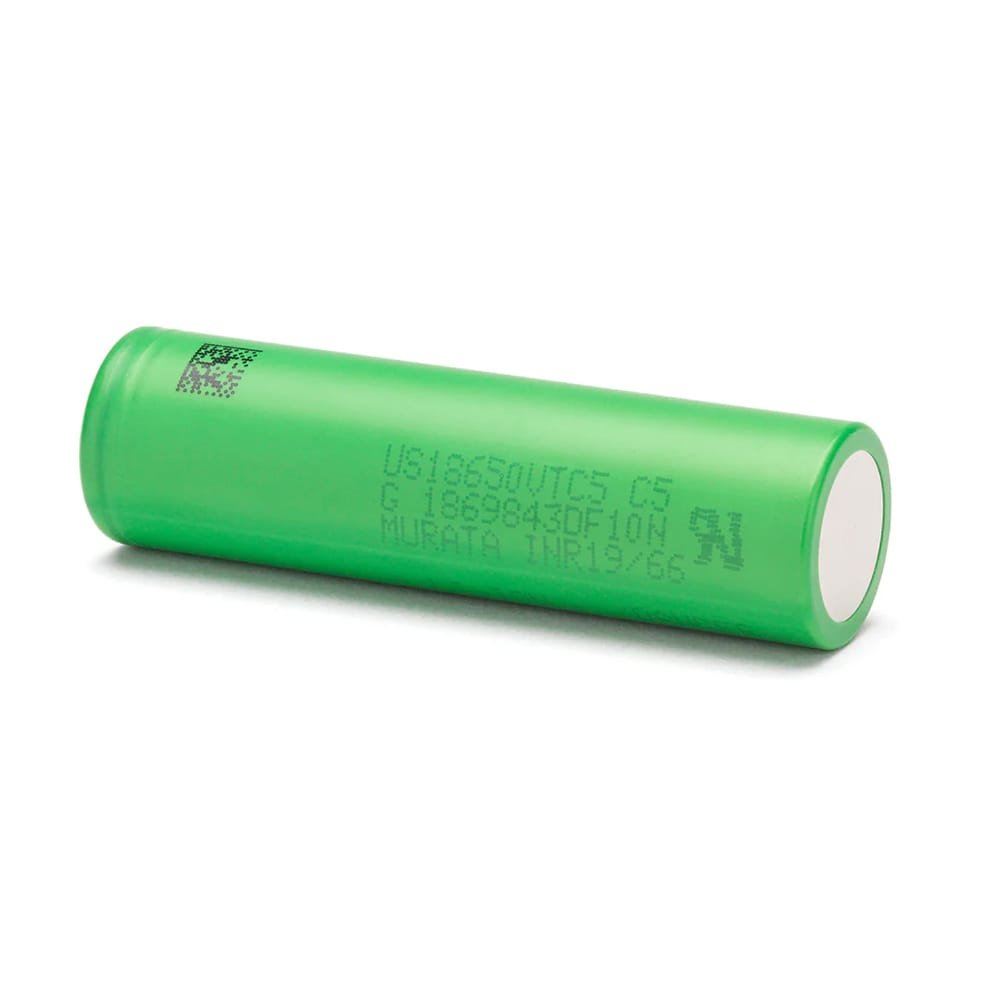

Murata Sony VTC5 18650 2600mah 30A Battery Cell for Dyson Vacuum Cleaner
Summary of 18650 Sony VTC5 Battery
The Murata Sony VTC5 18650 Battery Cell (2600mAh, 30A) is a high-performance lithium-ion battery designed for devices requiring long runtime, high power output, and reliability. Manufactured by Sony Murata, one of the most trusted names in the battery industry, this cell ensures exceptional consistency and safety. With high energy density, excellent cycle life, and customization support, the VTC5 is widely used in Dyson vacuum cleaners, e-bikes, vaping devices, and power tools.
18650 VTC5 Sony Battery Specification
Model: VTC5 Battery
Rated Capacity: 2600mAh
Minimum Capacity: 2500mAh
Rated Energy: 9.36Wh
Rated voltage: 3.6V
Discharge Cut-off Voltage: 2.5V
Charge Cut-off Voltage: 4.2V
Cycle Life: More than 500 cycles
Dimensions: Φ18*65mm
Weight: 45g
Internal Resistance: Less than 13mΩ
Standard Discharge Current: 1C (2600mA)
Standard Charge Current: 0.5C (1300mA)
Max Continuous Discharge Rate: 20A (no temperature limit)
Max Continuous Discharge Rate: 30A (cutoff at 80°C)
Max Continuous Charge Current: 2.5A
Charging Temperature: 0 to 50℃;
Discharge Temperature: -20 to 75℃
Storage Temperature:
- -10℃~25℃: 12 months
- -10℃~45℃: 3 months
- -10℃~60 ℃: 1 month
Key Features of Sony VTC5 18650 2600mAh 20A Battery
High Energy Density & Large Capacity
Efficient power delivery in a compact size. Ideal for applications where space and weight are critical, ensuring maximum performance without compromise.
2600mAh Large Capacity
Perfect for long-runtime devices. Provides extended usage per charge, reducing downtime for tools, vacuums, and portable electronics.
High Discharge Rate (30A Max)
Murata VTC5 battery supports maximum 20A continuous discharge current (no temperature limit) or 30A at 80°C limit. The powerful battery is perfect choice for power took like Dyson vacuum cleaner
Durable Cycle Life
Keeps more than 80% capacity after 500 charge& discharge cycles, ensuring longevity. Lower replacement costs and ensure long term reliability for clients.
Low Internal Resistance
Minimizes energy loss and heat generation. Enhances both efficiency and safety, ensuring stable operation under heavy loads.
Trusted Sony Murata Quality
Manufactured with precision and strict quality standards. Guarantees consistency across cells, making them perfect for series and parallel battery pack assembly.
OEM & Customization Support
Options for voltage, capacity, size, label, wrapping, plugs, and packaging. Provides flexibility for industries and brands needing tailored battery solutions.
Applications
🌀 Dyson Vacuum Cleaners – Stable high-current delivery for powerful suction.
🚴 E-bikes & Scooters – Extended range with safe high-current performance.
🔧 Power Tools – Reliable output for drills, saws, and industrial tools.
💨 Vaping Devices – Smooth, consistent power delivery with no drop-offs.
Comparison Table: Sony Murata VTC Series
| Model | Capacity | Max Discharge | Max Charge | Internal Resistance (mΩ) | Cycle Life (80% Capacity) | Weight | Common Applications |
|---|---|---|---|---|---|---|---|
| VTC3 | 1600mAh | 30A | 4A | ~20 | 300+ | 45g | Power tools, e-bikes |
| VTC4 | 2100mAh | 30A | 6A | ~18 | 400+ | 45g | Vapes, RC devices |
| VTC5 | 2600mAh | 20A (30A @80°C) | 6A | ~13 | 500+ | 45g | Dyson vacuums, vapes, e-bikes |
| VTC5A | 2600mAh | 25A (35A @80°C) | 6A | ~15 | 500+ | 47g | High-drain power tools, racing drones |
| VTC6 | 3000mAh | 15A (20A @80°C) | 6A | ~18 | 500+ | 47g | Laptops, e-bikes, flashlights |
❓ FAQ
Q1: Is the Sony VTC5 suitable for series and parallel battery packs?
Yes. Thanks to its excellent cell consistency and low internal resistance, the VTC5 is an excellent choice for both series and parallel configurations, ensuring stable performance in battery packs for e-bikes, power tools, and custom energy solutions.
Q2: How long is the cycle life of the Murata Sony VTC5 cell?
VTC5 battery keeps more than 80% capacity even after 500 charge & discharge cycles, ensures long cycle life and reduces maintain costs.
Q3: Can you customize VTC5 battery packs with OEM options?
Definitely. Cestpower support custom battery pack service, include dimension, voltage, capacity, label, package, and plug to meet your demand.
Q4: How does the VTC5 compare to other Sony batteries?
Compared to VTC3, VTC4, VTC5A, and VTC6, Sony 18650 VTC5 battery offers a balance between capacity (2600mAh) and discharge current (20A), makes it one of the best selections for high-drain and long runtime.
Q5: Where to buy genuine Sony VTC5?
Cestpower offer genuine original VTC5 2600mah battery cell made by Sony, we can also build battery pack in series and parallel with BMS per request.
