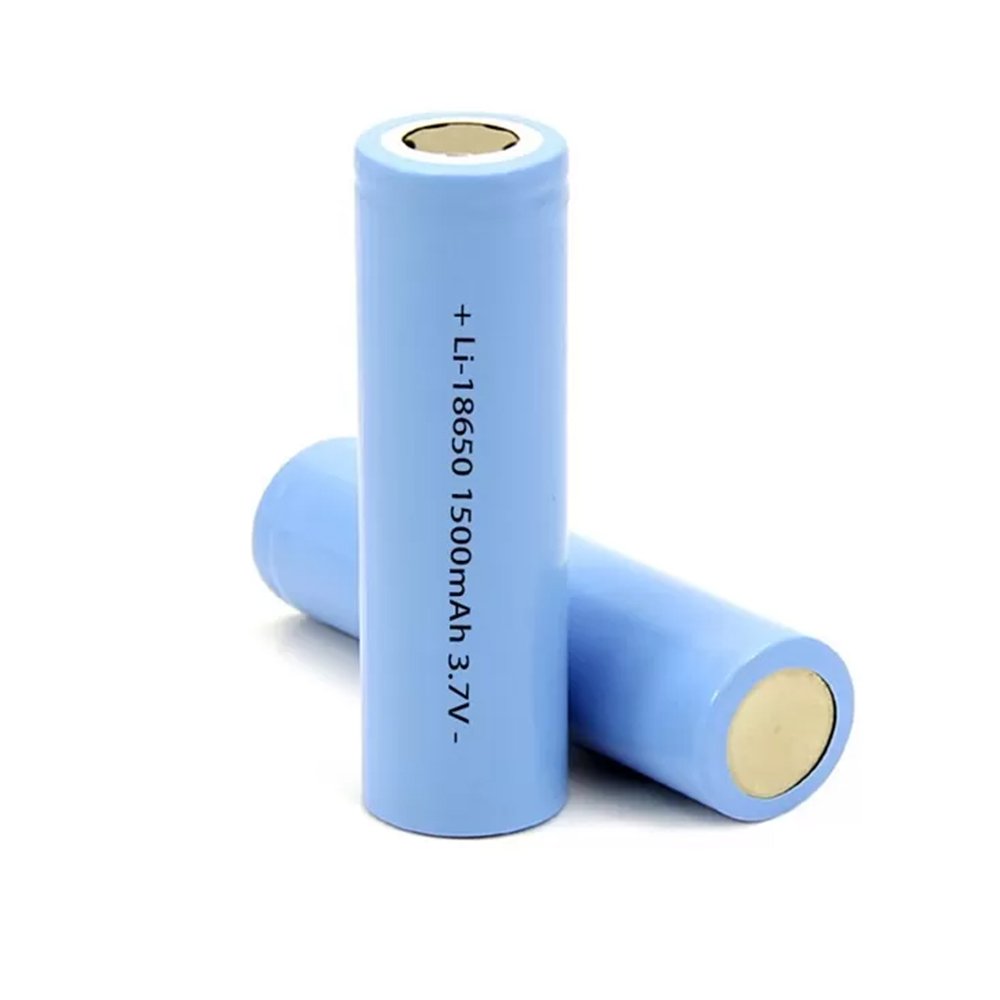

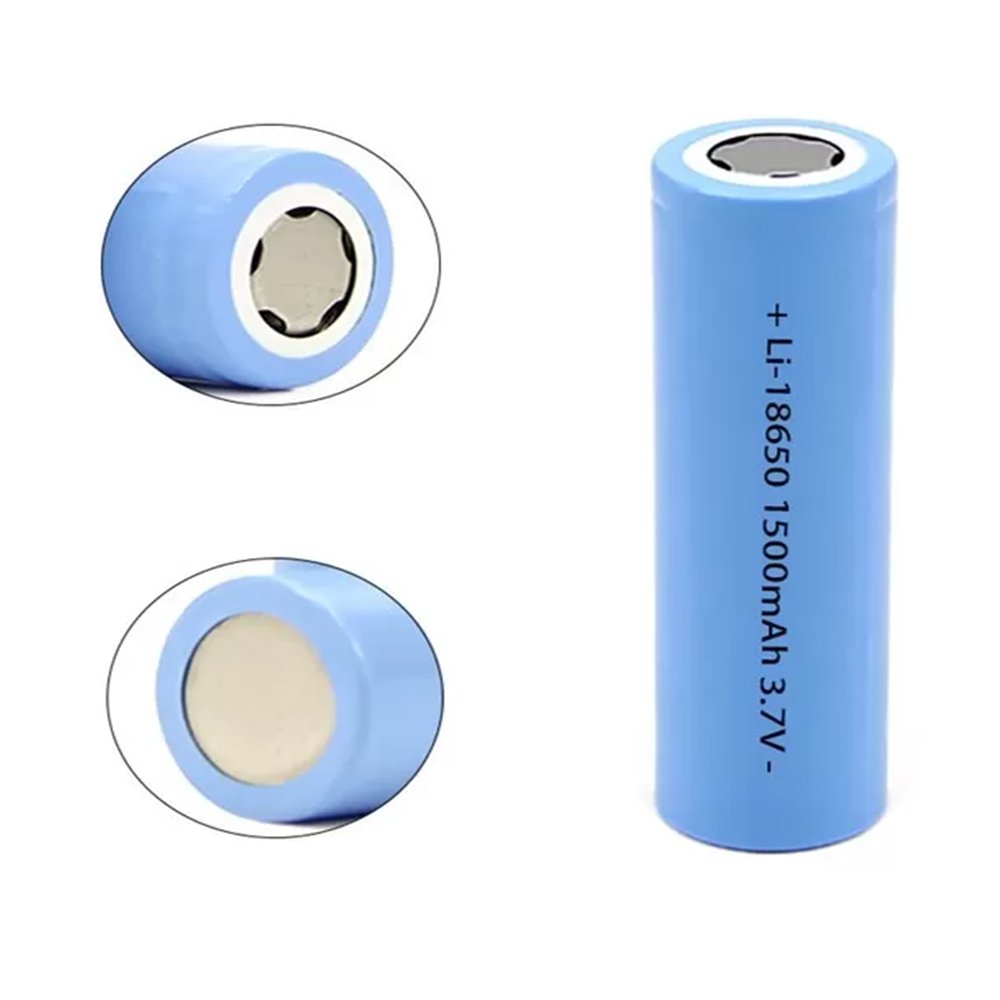

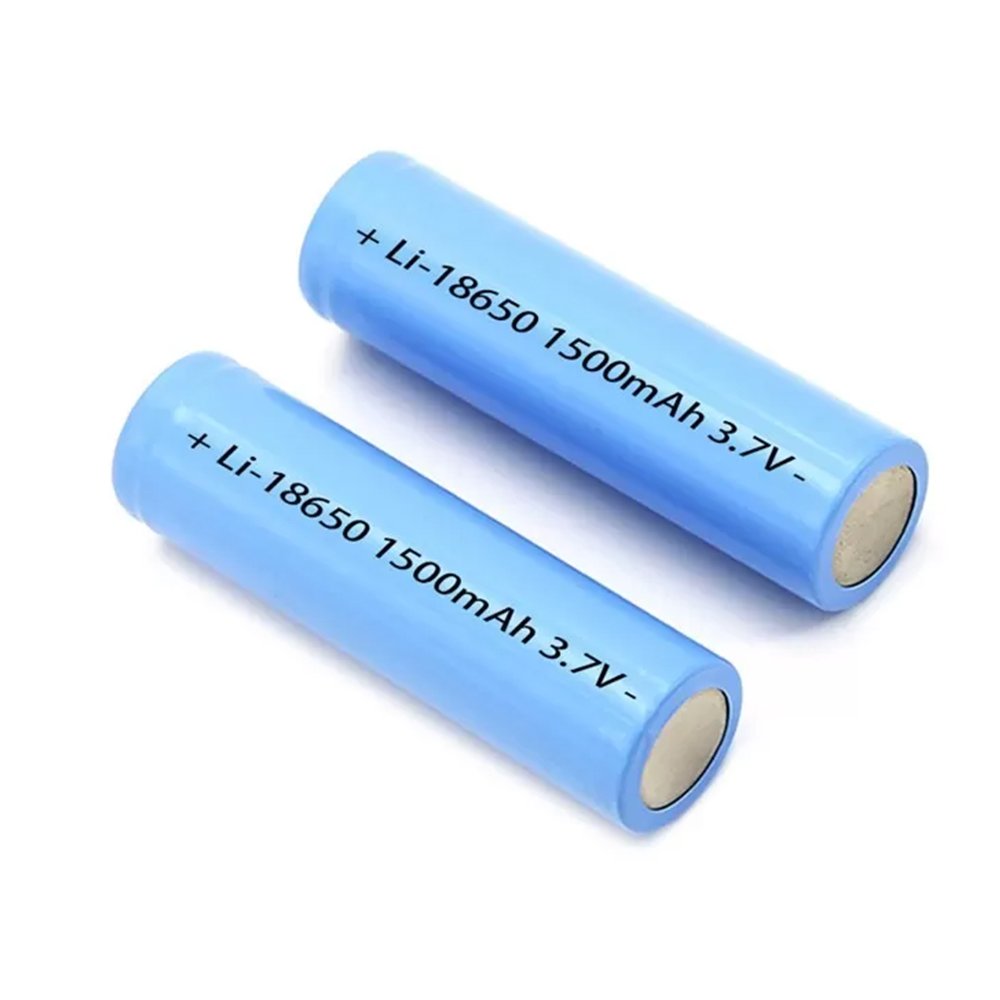

Li ion Cylindrical Rechargeable Battery Cell 18650 1500mAh 15C

Category: Tags: ,

Summary of 18650 1500mAh 15C 18650 Li-ion Battery​

This  battery is a high-drain rechargeable cell designed for applications that require strong, stable current output in a compact form factor. With a nominal voltage of 3.7V and a continuous discharge capability of up to 22.5A, it delivers reliable performance under heavy loads while maintaining low internal resistance and good thermal stability. Supporting over 500 charge cycles (up to 1000 with proper use), this battery balances durability, safety, and efficiency, making it an eco-friendly alternative to disposable cells. Its high C-rating makes it ideal for power tools, drones, e-bikes, RC vehicles, and other devices that demand rapid current bursts and consistent voltage under load.

37V 1500mAh 18650 Li Ion Rechargeable Battery​ Specification

Model: Li ion 18650 Battery​

Rated Capacity: 1500mAh

Energy: 5.55Wh

Energy Density: 142.31Wh/kg

Minimum Capacity: 1480mAh

Rated voltage: 3.7V

Discharge Cut-off Voltage: 2.75V

Charge Cut-off Voltage: 4.2V

Cycle Life: More than 500 cycles

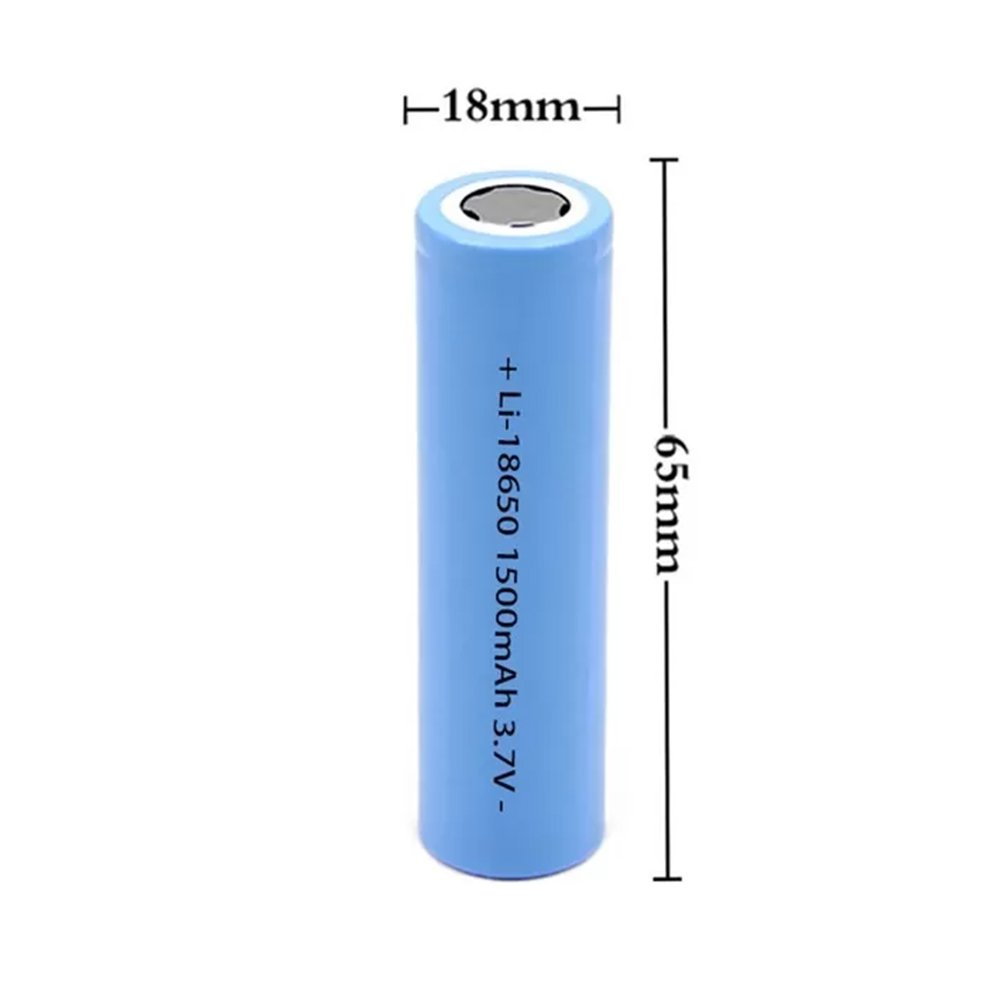

Dimensions: Φ18*65mm

Weight: 39g

Internal Resistance: Less than 17mΩ

Standard Discharge Current: 0.2C (300mA)

Standard Charge Current: 0.2C (300mA)

Max Continuous Discharge Rate: 15C (22.5A)

Max Continuous Charge Current: 1C (1.5A)

Charging Temperature: 0 to 45℃;

Discharge Temperature: -20 to 65℃

Storage Temperature:

  • -20℃~25℃: 12 months
  • -20℃~45℃: 3 months
  • -20℃~60 ℃: 1 month

Key Features – 18650 Flat Top Battery​ 1500mAh

🌱 Eco-Friendly

Reusability significantly reduces waste and long-term costs.

✅High-Current Output (22.5A Continuous)

Supports motorized and pulse-load devices with minimal voltage drop.

🔁 Rechargeable with Long Life

Up to 1000 charge cycles depending on usage and charging behavior.

⚖️ Compact Yet Powerful

Fits in standard 18650 holders and packs while providing industrial-grade performance.

Stable Chemistry (ICR)

Delivers excellent thermal performance and internal resistance for high-drain usage.

❓ FAQ – Frequently Asked Questions

Q1: What does 15C battery mean?

A: 15C battery means it can safely discharge current at 15 times its rated capacity. For a 1500mAh battery, this equals a continuous discharge current of 22.5A (1.5A × 15).

Q2: Is 15C enough for airsoft?

A: Yes, a 15C battery is generally sufficient for most airsoft guns, especially standard AEGs with stock or mildly upgraded motors. Higher-stress setups with high-speed motors or strong springs may benefit from a higher C-rating to ensure faster trigger response and reduced voltage sag.

Q3: How do you wake up a dead lithium battery?

A: A “dead” lithium battery can sometimes be woken up by slowly charging it with a smart charger that has a low-voltage or recovery mode. If the voltage is extremely low or the battery shows swelling or overheating, it should not be revived and must be replaced for safety.

Q4: Is it okay to trickle charge a lithium-ion battery?

A: No, lithium-ion batteries are not designed for continuous trickle charging like lead-acid batteries. They should be charged with a proper CC/CV charger that stops charging at 4.2 V to avoid overcharging and reduce safety risks.

Q5: What are common voltage problems with 18650s?

A: Common voltage problems with 18650 batteries include over-discharge below about 2.5 V, which can cause permanent capacity loss, and over-charge above 4.2 V, which increases safety risks. Voltage sag under high load is also common, often caused by high internal resistance or aging cells.

Battery 18650 Battery​ Cell List

Nominal  Voltage

    Nominal     Capacity

           Diameter            (±0.5mm)

Length (±0.5mm)

       Weight       (±5%)

Max Charge Current

Max Discharge  Current

    Max Internal Resistance
3.7V 1200mAh 18mm 65mm 36g 1.2A 1.2A 60mΩ
3.7V 1200mAh 18mm 65mm 36g 1.2A 12A 25mΩ
3.7V 1500mAh 18mm 65mm 39g 1.5A 4.5A 60mΩ
3.7V 1500mAh 18mm 65mm 39g 1.5A 22.5A 17mΩ
3.7V 1600mAh 18mm 65mm 39g 1.6A 4.8A 55mΩ
3.7V 1800mAh 18mm 65mm 39g 1.8A 1.8A 55mΩ
3.7V 2000mAh 18mm 65mm 43g 2A 6A 45mΩ
3.7V 2000mAh 18mm 65mm 44g 2A 16A 18mΩ
3.7V 2000mAh 18mm 65mm 44g 4A 20A 18mΩ
3.7V 2000mAh 18mm 65mm 44g 6A 30A 15mΩ
3.7V 2200mAh 18mm 65mm 45g 2.2A 6.6A 45mΩ
3.7V 2200mAh 18mm 65mm 45g 2.2A 11A 20mΩ
3.7V 2200mAh 18mm 65mm 45g 2.2A 17.6A 20mΩ
3.7V 2200mAh 18mm 65mm 45g 4.4A 30A 18mΩ
3.7V 2400mAh 18mm 65mm 48g 2.4A 7.2A 40mΩ
3.7V 2500mAh 18mm 65mm 48g 2.5A 7.5A 40mΩ
3.7V 2500mAh 18mm 65mm 45g 5A 20A 18mΩ
3.7V 2500mAh 18mm 65mm 45g 5A 30A 15mΩ
3.7V 2600mAh 18mm 65mm 50g 2.6A 7.8A 40mΩ
3.7V 2600mAh 18mm 65mm 45g 5.2A 13A 18mΩ
3.6V 3000mAh 18mm 65mm 48g 3A 9A 40mΩ
3.6V 3000mAh 18mm 65mm 46g 6A 15A 18mΩ
3.6V 3200mAh 18mm 65mm 48g 3.2A 9.6A 40mΩ
3.6V 3500mAh 18mm 65mm 46g 7A 10A 18mΩ
