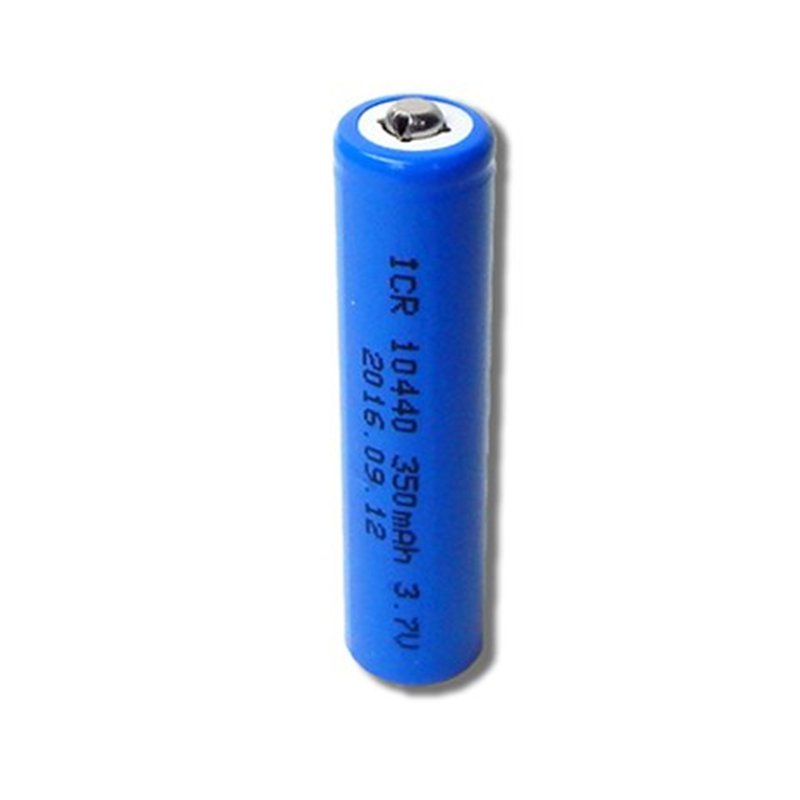

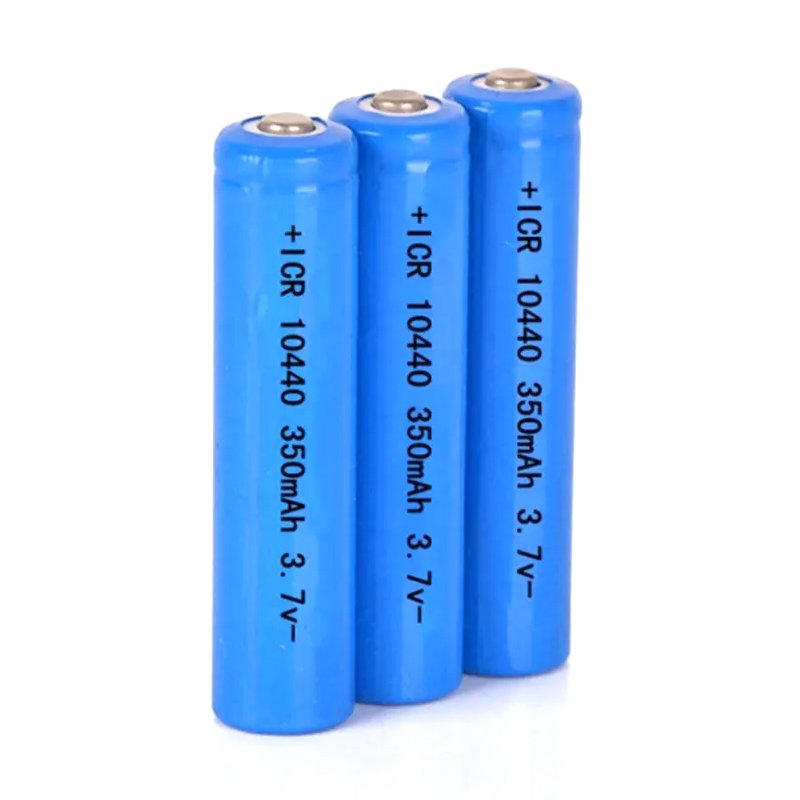

ICR10440 AAA Li Ion 10440 Lithium Ion 3.7V Battery Cell 350mAh 3.7 V

Category: Tag:

Description

The li ion 10440 battery is a small, cylindrical lithium-ion battery commonly used in compact electronics. Its name, “10440,” refers to its dimensions: 10mm in diameter and 44mm in length.

Main Features:

Compact Size:
The most significant advantage of the 10440 3.7V battery is its small form factor, making it ideal for compact devices that would not fit a larger battery, like the 18650.

Rechargeability:
Like other Li-ion batteries, the li ion 10440 is rechargeable, providing long-term savings compared to disposable batteries.

Voltage Consistency:
The 3.7V nominal voltage provides consistent power output for most low-drain devices, making it ideal for everyday use.

Model: icr10440

Chemistry: Li-ion

Nominal Voltage: 3.7V

Nominal Capacity: 350mAh

Nominal Energy: 1.295Wh

Discharge Cut-off Voltage: 2.5V

Standard Charge Current: 70mA (0.2C)

Maximum Charge Current: 350mA (1C)

Standard Discharge: 70mA (0.2C)

Maximum Discharge Current: 1050mA (3C)

Cycle Life: More than 500 Cycles

Temperature Range:

Charge Temperature Range: 0~45°C

Discharge Temperature Range: -20~60°C

Storage Temperature Range:

Less Than 90 Days: -20~45°C

Less Than 1 Year: -20~20°C

Within 1 Month: -20~60°C

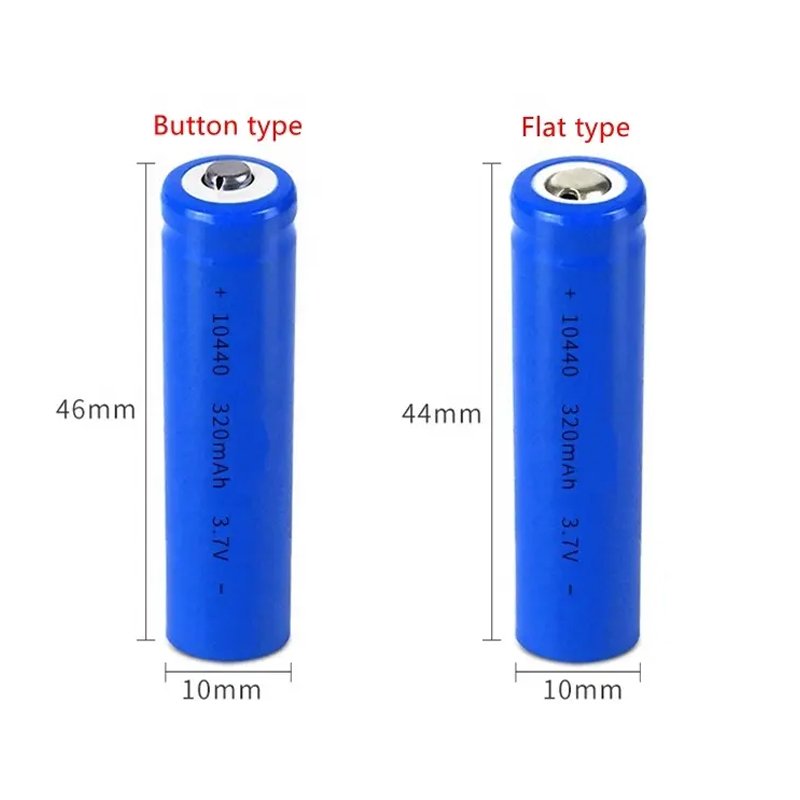

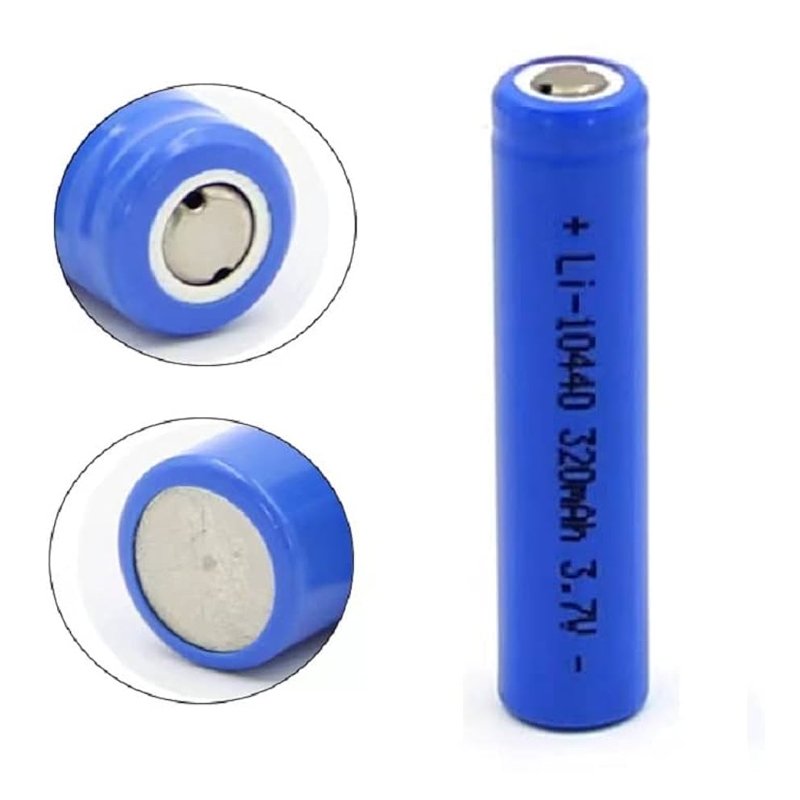

Positive Pole: Flat Top or Button Top

Weight: 10g

Dimensions: 10Φ x 44mm

Applications of the icr10440 3.7V Battery

  • Mini Flashlights:
    The lithium ion 10440 battery is widely used in small LED flashlights. These flashlights require a compact power source, and the 10440 3.7V battery offers the right size and power output.

  • Vaping:
    Some vape pens or e-cigarettes use 10440 3.7V batteries due to their small size and rechargeable nature. However, it’s essential to note that many modern vaping devices use larger batteries like 18650s for higher capacity.

  • Toys and Gadgets:
    10440 batteries power various toys, personal care devices, and small electronics. They are ideal when low power consumption is needed in a small form factor.

  • Hearing Aids:
    Some hearing aids rely on the 10440 3.7V battery due to the small size needed for these sensitive devices.
