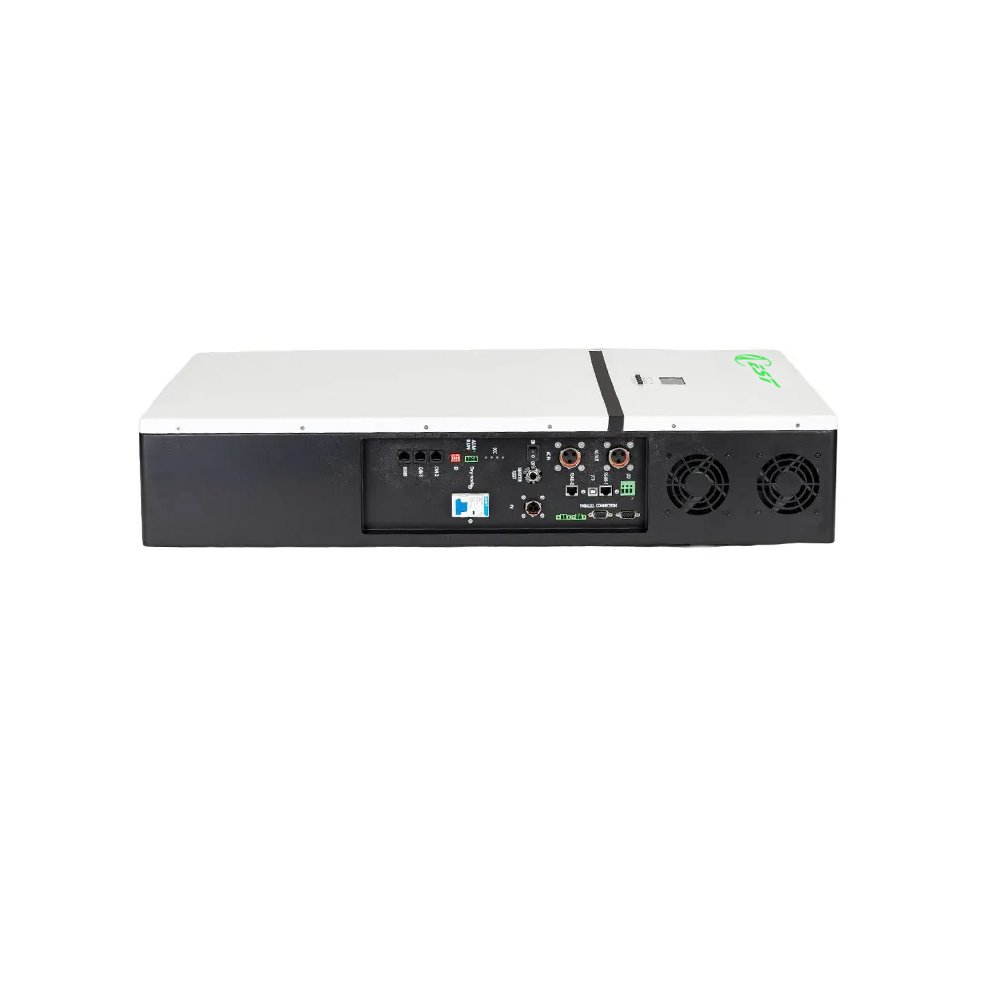

51.2V 100Ah 5kWh 16S1P Wall Mount Lifepo4 Battery Pack Intergrated with Inverter All in One for Home Energy System

Description





Support AC charge, Solar charge and Hybrid charge

Uninterrupted Power System



Nominal Voltage: 51.2V

Series & Parallel: 16S1P

Material: Prismatic LiFePo4 Battery

Nominal Capacity: 100Ah

Energy: 5120Wh

Charging Cut-off Voltage:  58.4V

Discharge Cut-off Voltage: 44.8V

Standard Charge Current: 20A

Max Charge Current: 100A

Max Continuous Discharge Current: 100A

Max Peak Discharge Current: 200A

Energy Efficiency (for Discharge and Charge): ≥95% at 20A

Capacity Self Discharge Factor:  Less  than 3% per month

Internal Resistance: Less than 20mΩ

BMS: Overcharge protection, Overvoltage protection, Overcurrent protection, Temperature protection,

Short circuit protection, Reverse connection protection.

Cycle Life: More than 4000 cycles @0.5C 100% DOD

Charge Temperature: 0~+55℃

Discharge Temperature: -20~+65℃

Storage Temperature:

<1  Month: -20~+45℃, RH45%~85%

<3  Month: -20~+40℃, RH45%~85%

<12  Month: -20~+25℃, RH45%~85%

Operating Humidity(charge and discharge): 5%-95% Relatively

Weight: Approx 76kg

Dimension: 840*490*150mm

Protection Level: IP54

LCD Display: Yes

Communication: CAN, RS485, RS232

Inverter:

Waveform: Pure Sine Wave

MPPT Voltage Range: 120V-450V

Solar Charge Current: Max 80A

Rated Output Power: 5kW

Rated Output Voltage: 200V 220V 230V 240V

Output Frequency: 50Hz or 60Hz

Cooling: Forced air cooling

Warranty: 5 Years

Installation: Wall Mount

OEM & ODM: Yes
