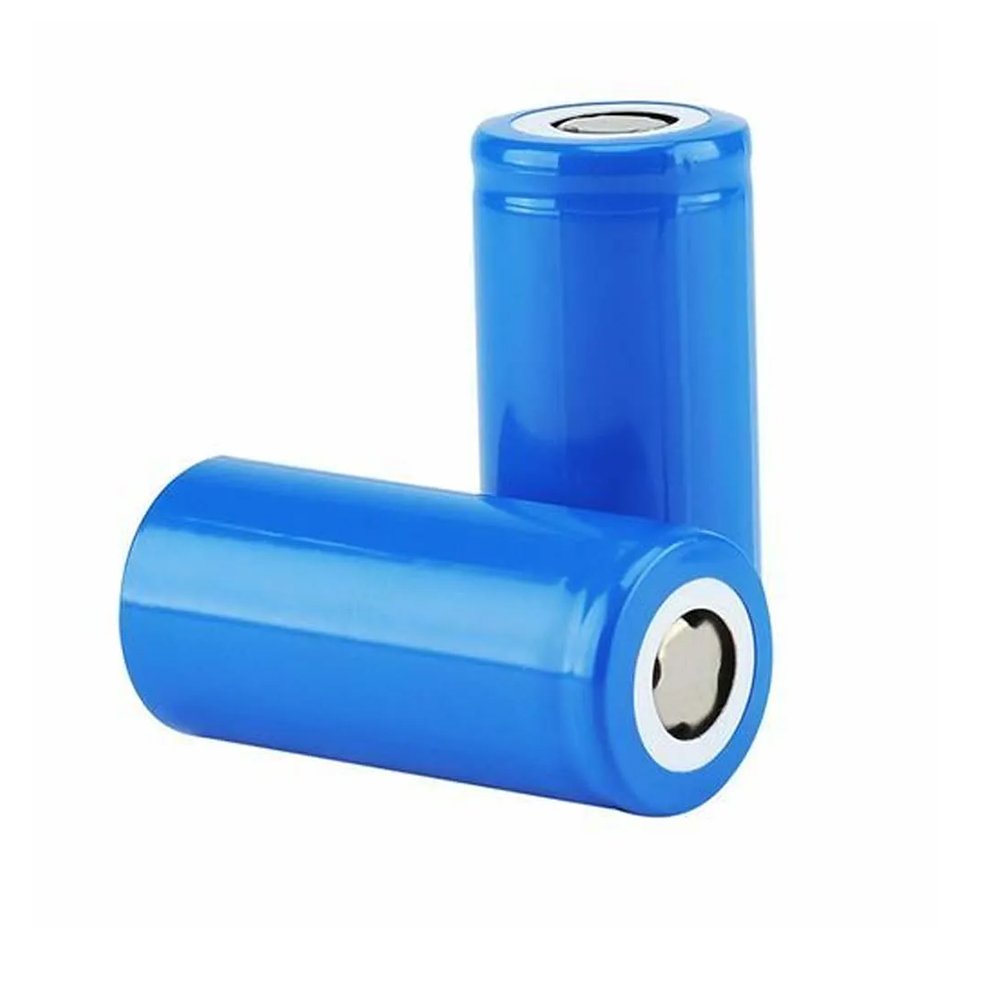

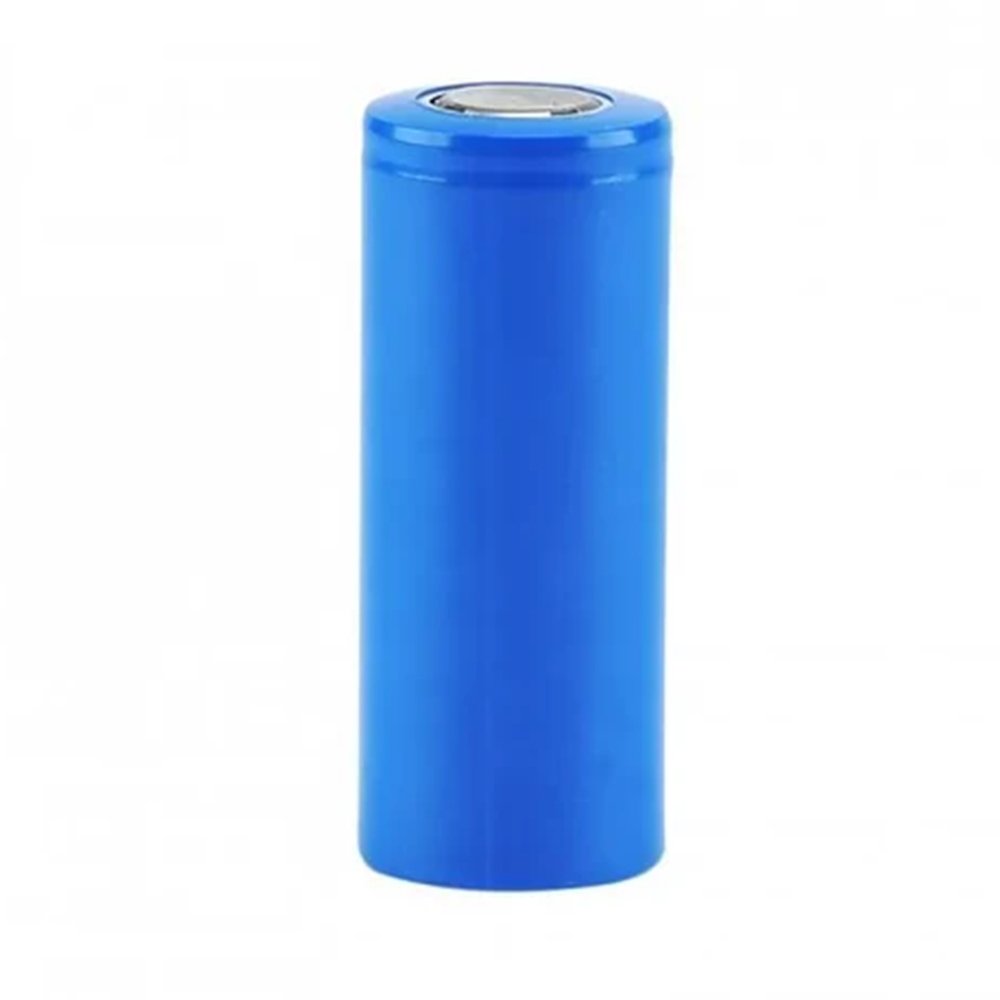

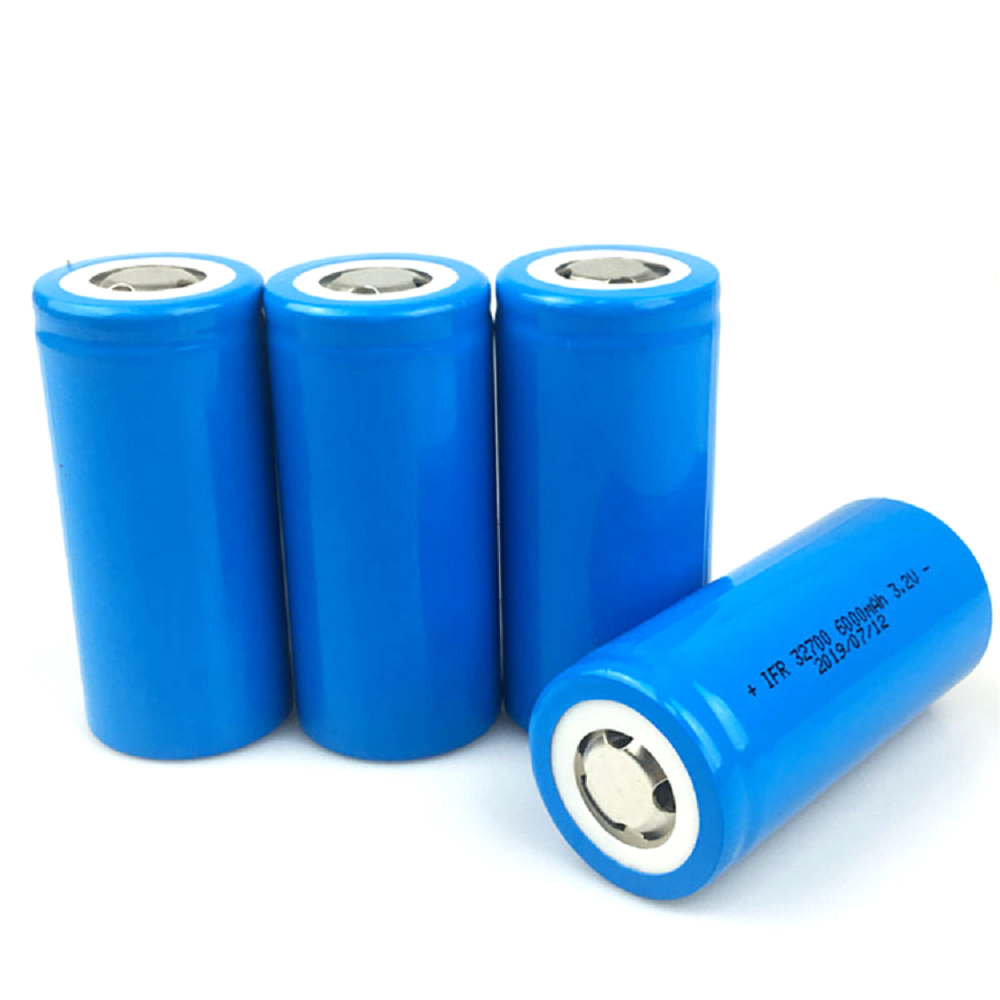

3.2V 32700 6000mAh 3C 20A LiFePo4 Battery Cell
32700 6000mAh LiFePo4 3.2v Product Specification
Model: 32700 3.2V LiFePo4 Battery
Rated Capacity: 6000mAh
Energy: 19.2Wh
Minimum Capacity: 6000mAh
Rated Voltage: 3.2V
Discharge Cut-off Voltage: 2.5V
Charge Cut-off Voltage: 3.65V
Cycle Life: More than 4000 cycles
Dimensions: Φ32*70mm
Weight: 163g
Internal Resistance: Less than 10mΩ
Standard Discharge Current: 0.2C (1200mA)
Standard Charge Current: 0.2C (1200mA)
Max Continuous Discharge Rate: 3C (20A)
Max Continuous Charge Current: 0.5C (3A)
Charging Temperature: 0 to 45℃;
Discharge Temperature: -20 to 60℃
Storage Temperature:
- -20℃~25℃: 12 months
- -20℃~45℃: 3 months
- -20℃~60 ℃: 1 month
Certificate of approval: CE CB ROHS REACH MSDS UN38.3 BIS UL PSE
Rechargeable 3.2V Batteries List
Model Name | Nominal Capacity | Diameter (±0.5mm) | Length (±0.5mm) | Weight (±5%) | Max Charge Current | Max Discharge Current | Max Internal Resistance |
| 10370 | 150mAh | 10mm | 37mm | 8g | 75mA | 0.15A | 80mΩ |
| 10440 | 220mAh | 10mm | 44mm | 8g | 0.11A | 0.22A | 80mΩ |
| 10500 | 300mAh | 10mm | 50mm | 10.8g | 0.15A | 0.3A | 80mΩ |
| 13300 | 250mAh | 13mm | 30mm | 10g | 125mA | 0.25A | 80mΩ |
| 14250 | 180mAh | 14mm | 25mm | 12g | 90mA | 0.18A | 80mΩ |
| 14430 | 400mAh | 14mm | 43mm | 13g | 0.2A | 0.4A | 60mΩ |
| 14430 | 500mAh | 14mm | 43mm | 15g | 0.25A | 0.5A | 60mΩ |
| 14500 | 500mAh | 14mm | 50mm | 16.5g | 0.25A | 0.5A | 60mΩ |
| 14500 | 600mAh | 14mm | 50mm | 18g | 0.3A | 0.6A | 60mΩ |
| 14650 | 800mAh | 14mm | 65mm | 22g | 0.4A | 0.8A | 60mΩ |
| 14650 | 1000mAh | 14mm | 65mm | 23.5g | 0.5A | 1A | 60mΩ |
| 15270 | 200mAh | 15mm | 27mm | 15.2g | 0.1A | 0.2A | 80mΩ |
| 16340 | 550mAh | 16mm | 34mm | 17g | 275mA | 0.55A | 80mΩ |
| 16500 | 800mAh | 16mm | 50mm | 23g | 0.4A | 0.8A | 80mΩ |
| 16650 | 1200mAh | 16mm | 65mm | 30g | 0.6A | 1.2A | 80mΩ |
| 17335 | 500mAh | 17mm | 33.5mm | 16g | 0.25A | 0.5A | 80mΩ |
| 18350 | 600mAh | 18mm | 35mm | 16.5g | 0.3A | 0.6A | 60mΩ |
| 18500 | 800mAh | 18mm | 50mm | 23.5g | 0.4A | 0.8A | 60mΩ |
| 18500 | 1000mAh | 18mm | 50mm | 27.5g | 0.5A | 1A | 40mΩ |
| 18500 | 1200mAh | 18mm | 50mm | 30.5g | 0.6A | 1.2A | 40mΩ |
| 18650 | 1200mAh | 18mm | 65mm | 37.5g | 0.6A | 1.2A | 60mΩ |
| 18650 | 1500mAh | 18mm | 65mm | 40.5g | 0.75A | 1.5A | 60mΩ |
| 18650 | 1800mAh | 18mm | 65mm | 42.2g | 0.9A | 1.8A | 60mΩ |
| 18650 | 2000mAh | 18mm | 65mm | 44g | 1A | 2A | 60mΩ |
| 21700 | 2400mAh | 21mm | 70mm | 60g | 1.2A | 2.4A | 50mΩ |
| 21700 | 3000mAh | 21mm | 70mm | 76g | 1.5A | 3A | 50mΩ |
| 22650 | 2000mAh | 22mm | 65mm | 65.3g | 1A | 2A | 50mΩ |
| 22650 | 2400mAh | 22mm | 65mm | 69.3g | 1.2A | 2.4A | 50mΩ |
| 26650 | 3600mAh | 26mm | 65mm | 78g | 3.6A | 18A | 12mΩ |
| 26650 | 4000mAh | 26mm | 65mm | 78g | 4A | 20A | 12mΩ |
| 26700 | 4500mAh | 26mm | 70mm | 93g | 2.25A | 20A | 12mΩ |
| 26700 | 5000mAh | 26mm | 70mm | 95g | 2.5A | 25A | 16mΩ |
| 32700 | 6000mAh | 32mm | 70mm | 163g | 3A | 20A | 10mΩ |
| 32700 | 6500mAh | 32mm | 70mm | 168g | 3.25A | 19.5A | 10mΩ |
| 33140 | 15000mAh | 33mm | 140mm | 270g | 7.5A | 45A | 10mΩ |
| 40135 | 20000mAh | 40mm | 135mm | 380g | 10A | 60A | 8mΩ |
Contact us for wholesale quote of 32700 LiFePo4 3.2 V 6000mAh
