Description

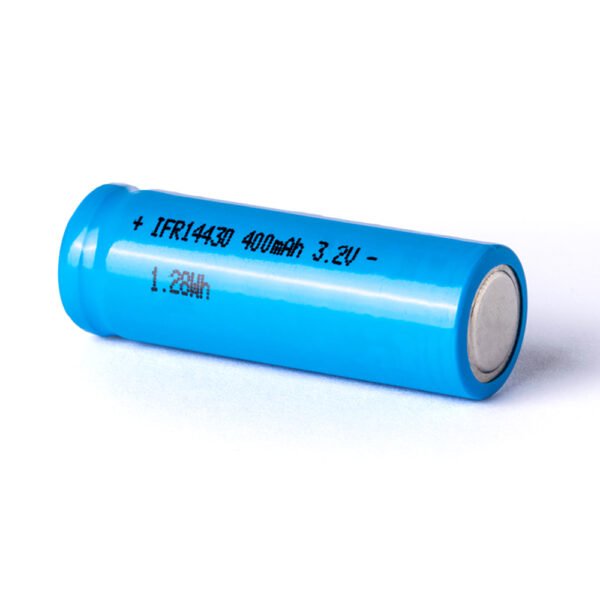

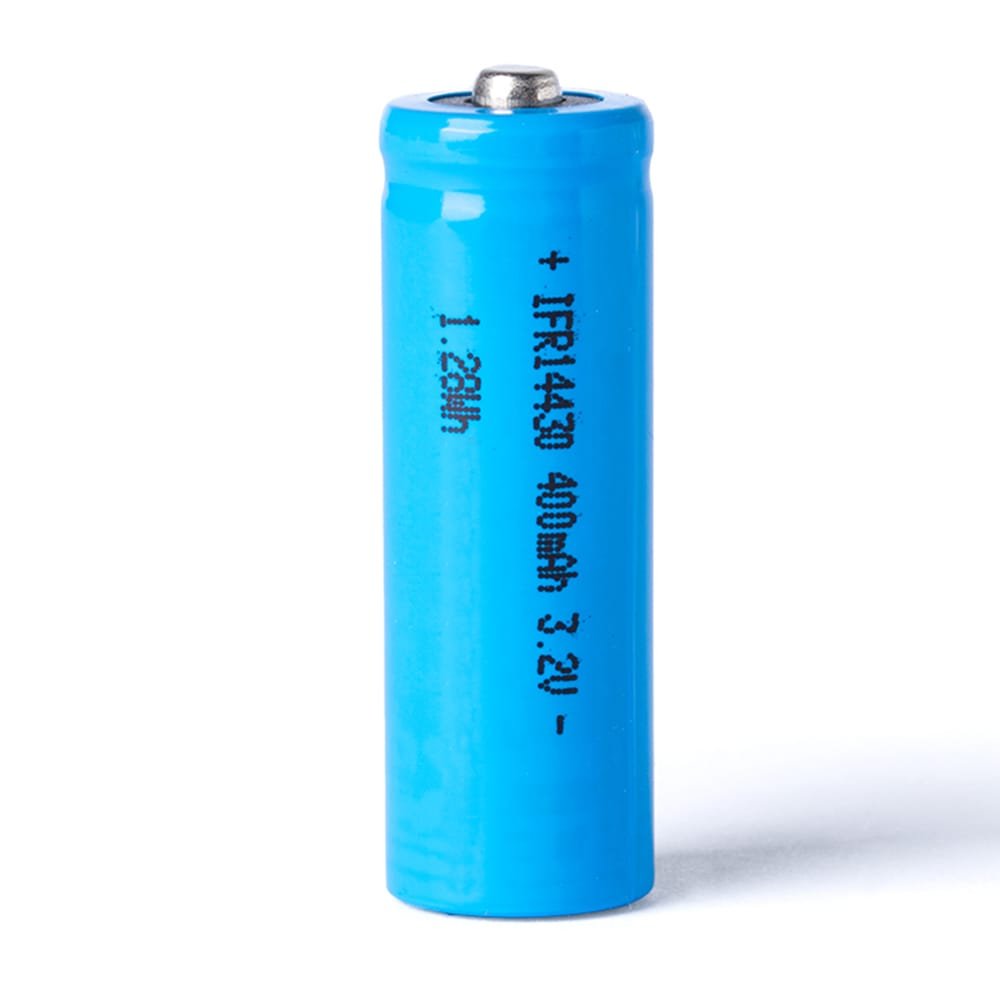

3.2V 14430 400mAh Product Specification

Model: 14430

Rated capacity: 400mAh

Energy: 1.28Wh

Minimum Capacity: 390mAh

Rated voltage: 3.2V

Discharge Cut-off Voltage: 2.0V

Charge Cut-off Voltage: 3.65V

Cycle Life: More than 4000 cycles

Dimensions: Φ14*43mm

Weight: 13g

Internal Resistance: Less than 60mΩ

Standard Discharge Current: 0.2C (80mA)

Standard Charge Current: 0.2C (80mA)

Max Continuous Discharge Rate: 1C (400mA)

Max Continuous Charge Current: 0.5C (200mA)

Charging Temperature: 0 to 45℃;

Discharge Temperature: -20 to 60℃

Storage Temperature:

• -20℃~25℃: 12 months
• -20℃~45℃: 3 months
• -20℃~60 ℃: 1 month

Certificate of approval: CE CB ROHS REACH MSDS UN38.3 BIS UL PSE

Cylindrical LiFePO4 Battery Cell List

Model Name	Nominal Capacity	Diameter                   (±0.5mm)	Length (±0.5mm)	Weight             (±5%)	Max Charge Current	Max Discharge Current	Max Internal           Resistance
10370	150mAh	10mm	37mm	8g	75mA	0.15A	80mΩ
10440	220mAh	10mm	44mm	8g	0.11A	0.22A	80mΩ
10500	300mAh	10mm	50mm	10.8g	0.15A	0.3A	80mΩ
13300	250mAh	13mm	30mm	10g	125mA	0.25A	80mΩ
14250	180mAh	14mm	25mm	12g	90mA	0.18A	80mΩ
14430	400mAh	14mm	43mm	13g	0.2A	0.4A	60mΩ
14430	500mAh	14mm	43mm	15g	0.25A	0.5A	60mΩ
14500	500mAh	14mm	50mm	16.5g	0.25A	0.5A	60mΩ
14500	600mAh	14mm	50mm	18g	0.3A	0.6A	60mΩ
14650	800mAh	14mm	65mm	22g	0.4A	0.8A	60mΩ
14650	1000mAh	14mm	65mm	23.5g	0.5A	1A	60mΩ
15270	200mAh	15mm	27mm	15.2g	0.1A	0.2A	80mΩ
16340	550mAh	16mm	34mm	17g	275mA	0.55A	80mΩ
16500	800mAh	16mm	50mm	23g	0.4A	0.8A	80mΩ
16650	1200mAh	16mm	65mm	30g	0.6A	1.2A	80mΩ
17335	500mAh	17mm	33.5mm	16g	0.25A	0.5A	80mΩ
18350	600mAh	18mm	35mm	16.5g	0.3A	0.6A	60mΩ
18500	800mAh	18mm	50mm	23.5g	0.4A	0.8A	60mΩ
18500	1000mAh	18mm	50mm	27.5g	0.5A	1A	40mΩ
18500	1200mAh	18mm	50mm	30.5g	0.6A	1.2A	40mΩ
18650	1200mAh	18mm	65mm	37.5g	0.6A	1.2A	60mΩ
18650	1500mAh	18mm	65mm	40.5g	0.75A	1.5A	60mΩ
18650	1800mAh	18mm	65mm	42.2g	0.9A	1.8A	60mΩ
18650	2000mAh	18mm	65mm	44g	1A	2A	60mΩ
21700	2400mAh	21mm	70mm	60g	1.2A	2.4A	50mΩ
21700	3000mAh	21mm	70mm	76g	1.5A	3A	50mΩ
22650	2000mAh	22mm	65mm	65.3g	1A	2A	50mΩ
22650	2400mAh	22mm	65mm	69.3g	1.2A	2.4A	50mΩ
26650	3600mAh	26mm	65mm	78g	3.6A	18A	12mΩ
26650	4000mAh	26mm	65mm	78g	4A	20A	12mΩ
26700	4500mAh	26mm	70mm	93g	2.25A	20A	12mΩ
26700	5000mAh	26mm	70mm	95g	2.5A	25A	16mΩ
32700	6000mAh	32mm	70mm	163g	3A	20A	10mΩ
32700	6500mAh	32mm	70mm	168g	3.25A	19.5A	10mΩ
33140	15000mAh	33mm	140mm	270g	7.5A	45A	10mΩ
40135	20000mAh	40mm	135mm	380g	10A	60A	8mΩ



Contact us for wholesale quote of 14430 400mAh
